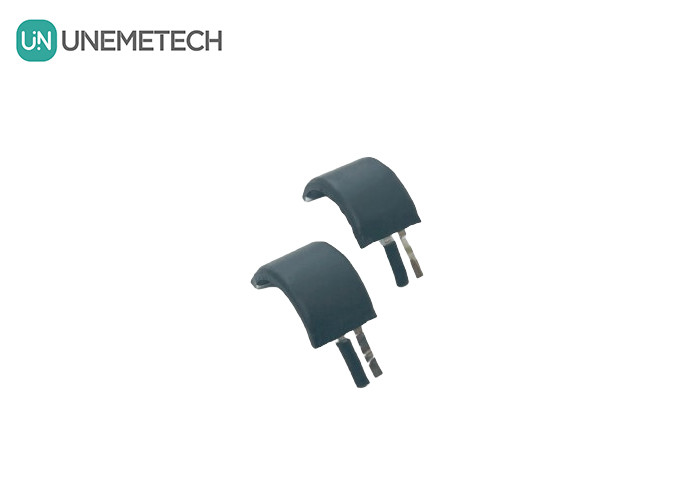

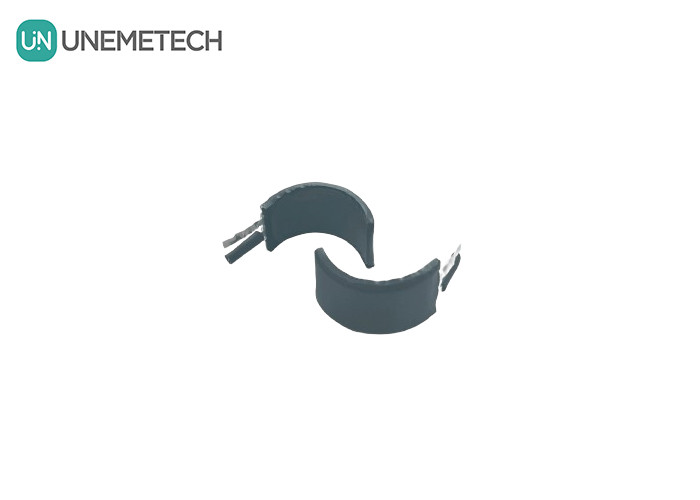

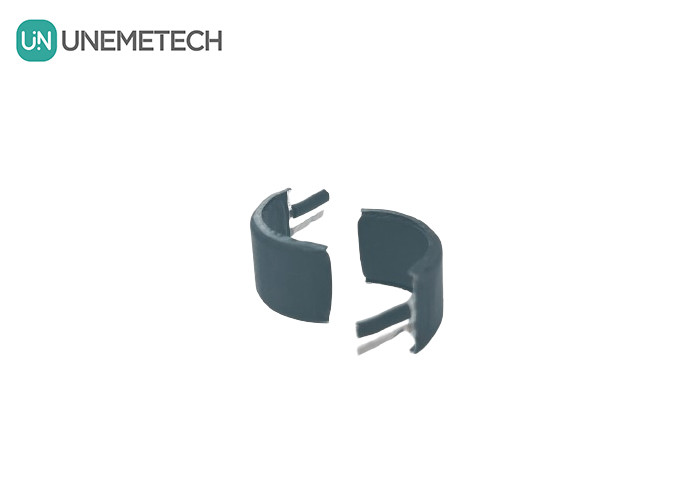

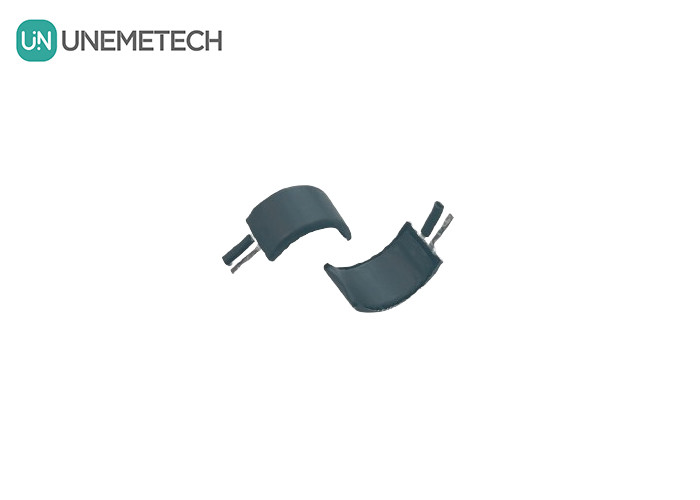

Curved Lithium Polymer Battery 201030 3.7V 50mAh Smart Ring Battery with Long Cycle Life
Features Overview of Curved Lithium Polymer Battery
1. Various sizes: size and capacity to choose from, strong applicability
2. Quality assurance: using product a cell, high capacity, low internal resistance
3. Stable performance: Long Cycle Life: continuous charge and discharge 500 times, the battery capacity is not less than 80% of the rated capacity.
4. No memory effect: it can be charged and discharged at any time
5. High Security: Built-in Circuit Protection Board, with short-circuit, overcharge, over-discharge, impact, vibration, acupuncture, high temperature and other states, no fire, no explosion and so on.
Application of Curved Lithium Polymer Battery
Smart ring, bluetooth headset, smart wear, GPS navigation, POS, mobile power, learning machine, tablet, car navigation, MP3, MP4, MP5, plug-in speaker, wireless mouse, mobile phone, Xiaomi Display, PSP built-in Battery, apple peripheral power supply, tablet computer, Mobile DVD, Notebook Battery, wireless monitoring equipment, medical equipment, various instruments, LED lamps, traffic signs, portable small appliances, various DIY instruments, metal detectors, and other digital battery products.
Technical Parameters of Curved Lithium Polymer Battery
| Model |
201030 |
| Product size |
2.0mm*10.0mm*31.5mm(Thickness*Width*Length) |
| Nominal Voltage |
3.7V |
| Minimum Capacity |
50mAh |
| Charging Voltage |
4.2V |
| Discharge Cut-off Voltage |
3.0V |
| AC Impedance Resistance |
≤1600mΩ |
| Standard charge current |
10mA(0.2C) |
| Max. continuous Charge Current |
50mA(1C) |
| Standard discharge current |
10mA(0.2C) |
| Max.continuous discharge current |
50mA(1C) |
| Weight |
About 1.0g |
| Operating Temperature |
charge:0~+45℃/dischage:- 20~+60℃ |
| Storage Temperature |
less than 3 month:- 20~+35℃ Recovery capacity＞90%
less than 12 months:- 20~+30℃ Recovery capacity＞85%
|
| Model |
Min Capacity(mAh) |
Thickness(mm) |
Width(mm) |
Length(mm) |
Color |
Remark |
| 150724 |
14 |
1.5 |
7 |
24 |
Silver/Black |
curvature and thickness are adjustable, custom width and length require new mold |
| 150726 |
16 |
1.5 |
7 |
26 |
Silver/Black |
| 150728 |
18 |
1.5 |
7 |
28 |
Silver/Black |
| 150730 |
20 |
1.5 |
7 |
30 |
Silver/Black |
| 170724 |
18 |
1.7 |
7 |
24 |
Silver/Black |
| 170726 |
20 |
1.7 |
7 |
26 |
Silver/Black |
| 170728 |
22 |
1.7 |
7 |
28 |
Silver/Black |
| 170730 |
24 |
1.7 |
7 |
30 |
Silver/Black
|
|
***Please contact us to get more detailed information and free samples***
