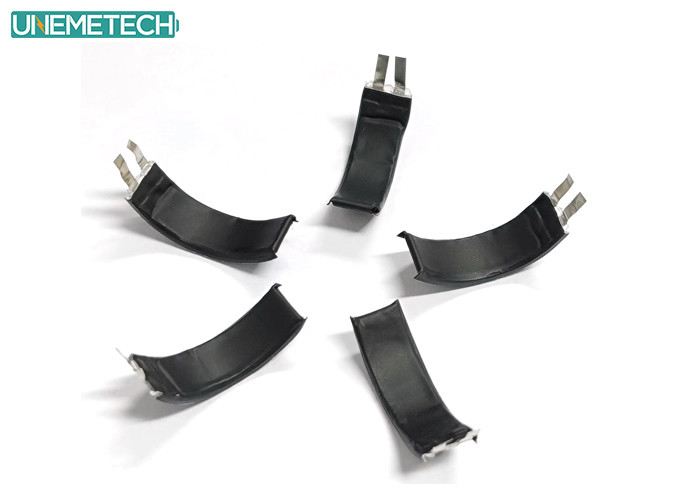

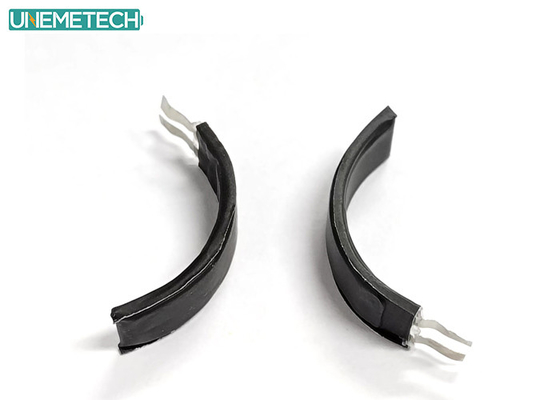

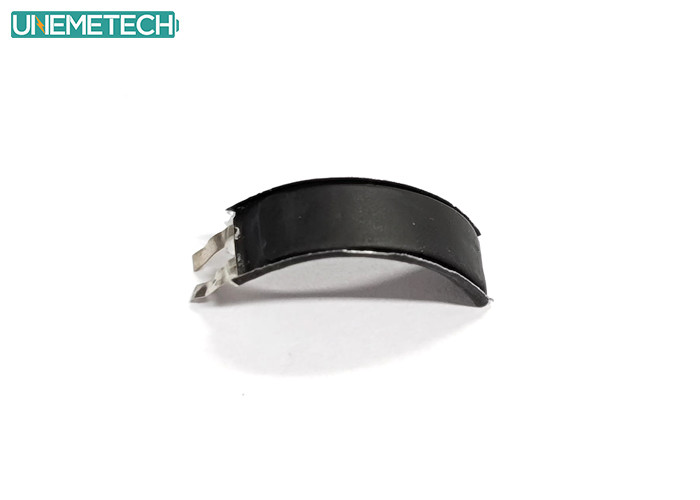

UNM150725 3.7V 15mAh Curved Lithium Polymer Battery For Sleep Tracker Rings
Curved Lithium Polymer Battery UNM150725 Description
The UNM150725 curved lithium polymer battery operates at 3.7V with a capacity of 15mAh, making it an ideal power source for sleep tracker rings. Its compact and lightweight design allows for seamless integration into wearable devices, ensuring comfort and unobtrusiveness during use.
With a 15mAh capacity, this battery provides sufficient energy for essential functions, such as monitoring sleep patterns and providing feedback to users. The curved form factor is specifically designed to fit the contours of smart rings, enhancing the overall user experience. Overall, the UNM150725 battery is a reliable and efficient power solution tailored for modern sleep tracking technology.
Application of Curved Lithium Polymer Battery UNM150725
The curved lithium polymer battery UNM150725, operating at 3.7V, presents a versatile power solution suitable for a wide array of applications. Its unique curved design allows for seamless integration into various industries, including wearable technology, smart clothing, healthcare devices, IoT sensors, flexible displays, robotics, automotive interiors, aerospace and drones, portable electronics, and fashion-tech. With its flexibility and compact form factor, this battery model enables innovative and ergonomic designs in products that require a customized and space-efficient power source. The UNM150725 battery's adaptability makes it a valuable component for designers and engineers aiming to enhance both functionality and design in their devices across different sectors.
Technical Parameters of Curved Lithium Polymer Battery
| Model | UNM150725 |
| Product size | 1.5mm*7.0mm*25.0mm(Thickness*Width*Length) |
| Nominal Voltage | 3.7V |
| Minimum Capacity | 15mAh |
| Charging Voltage | 4.2V |
| Discharge Cut-off Voltage | 3.0V |
| AC Impedance Resistance | ≤1600mΩ |
| Standard charge current | 3.0mA/(0.2C) |
| Max. continuous Charge Current | 15mA/(1C) |
| Standard discharge current | 3.0mA/(0.2C) |
| Max.continuous discharge current | 15mA/(1C) |
| Weight | About 1.0g |
| Operating Temperature | charge:0~+45℃/dischage:- 20~+60℃ |
| Storage Temperature |
less than 3 month:- 20~+35℃ Recovery capacity＞90% less than 12 months:- 20~+30℃ Recovery capacity＞85% |
| Model | 3.7V/3.8VCapacity(mAh) | Thickness(mm) | Width(mm) | Length(mm) | Color | Remark |
| 150725 | 15/17 | 1.5 | 7 | 25 | Black | Voltage system, curvature, thickness can be adjusted, the battery folding method can choose positive folding or reverse folding |
| 150728 | 18/20 | 1.5 | 7 | 28 | Black | |
| 150730 | 20/22 | 1.5 | 7 | 30 | Black | |
| 155525 | 12/14 | 1.5 | 5.5 | 25 | Black | |
| 155528 | 16/17 | 1.5 | 5.5 | 28 | Black | |
| 201230 | 54/58 | 2.0 | 12 | 30 | Black | |
|
||||||
Tips for Using Curved Lithium Polymer Batteries:
Gentle Bending: Bend the battery gently within its specified bending radius to prevent damage to internal components.
Proper Installation: Ensure correct installation to avoid short circuits or performance issues.
Temperature Control: Avoid extreme temperatures to prevent overheating and maintain battery safety.
Handle with Care: Prevent physical damage like punctures or impacts to maintain battery integrity.
Use Compatible Chargers: Charge with recommended chargers to avoid damage from improper charging.
Regular Checks: Monitor for swelling, leaks, or odd smells and discontinue use if abnormalities are found.
Storage: Store in a cool, dry place away from heat and sunlight to preserve battery quality.
Disposal: Follow local regulations for safe disposal to protect the environment.
Stay Within Limits: Use within specified voltage and current ratings to avoid overloading
***Please contact us to get more detailed information and free samples***
