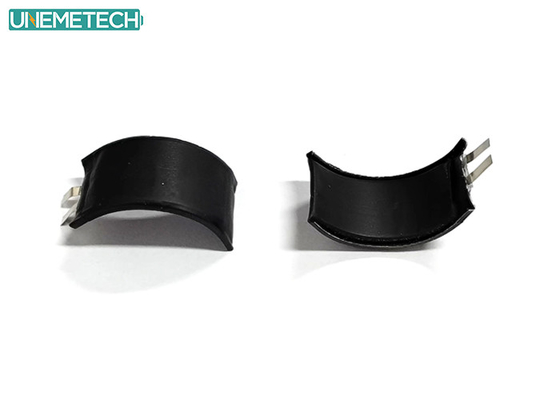

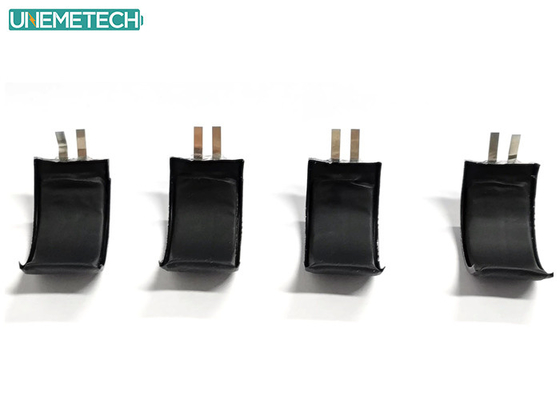

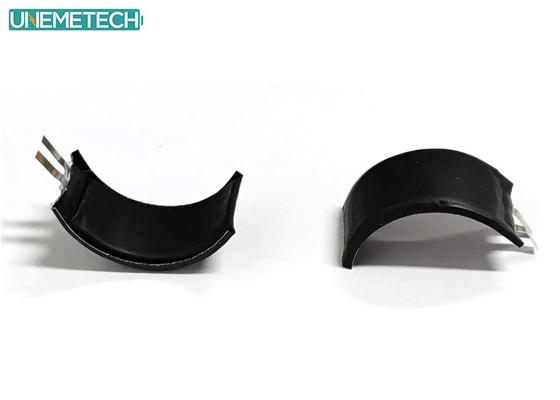

Curved Lipo Battery UNM201230 3.8V 58mAh For Health Monitoring Smart Rings
Curved Lithium Polymer Battery UNM201230 Description
The UNM201230 curved lithium polymer battery operates at 3.8V with a capacity of 58mAh, making it an ideal power source for health monitoring smart rings. Its lightweight and compact design ensures seamless integration into wearable devices, providing comfort during use.
With a 58mAh capacity, this battery delivers sufficient energy for essential health tracking features, such as heart rate monitoring and activity tracking. The curved shape is specifically designed to fit the contours of smart rings, enhancing both usability and aesthetics. Overall, the UNM201230 battery is a reliable and efficient solution tailored for modern health-focused wearables.
Application of Curved Lithium Polymer Battery UNM201230
The curved lithium polymer battery UNM201230, with its flexible design, finds versatile applications across various industries. Its unique form factor allows for innovative and ergonomic designs in wearable technology, smart clothing, healthcare devices, IoT sensors, flexible displays, robotics, automotive interiors, aerospace and drones, portable electronics, and fashion-tech. This battery's adaptability and compactness make it ideal for powering devices that require a customized and space-efficient power solution, enabling creative and functional designs in a wide range of products.
Technical Parameters of Curved Lithium Polymer Battery
| Model | UNM201230 |
| Product size | 2.0mm*12.0mm*30.0mm(Thickness*Width*Length) |
| Nominal Voltage | 3.8V |
| Minimum Capacity | 58mAh |
| Charging Voltage | 4.35V |
| Discharge Cut-off Voltage | 3.0V |
| AC Impedance Resistance | ≤1600mΩ |
| Standard charge current | 11.6mA(0.2C) |
| Max. continuous Charge Current | 58mA(1C) |
| Standard discharge current | 11.6mA(0.2C) |
| Max.continuous discharge current | 58mA(1C) |
| Weight | About 1.5g |
| Operating Temperature | charge:0~+45℃/dischage:- 20~+60℃ |
| Storage Temperature |
less than 3 month:- 20~+35℃ Recovery capacity＞90% less than 12 months:- 20~+30℃ Recovery capacity＞85% |
| Model | 3.7V/3.8VCapacity(mAh) | Thickness(mm) | Width(mm) | Length(mm) | Color | Remark |
| 150725 | 15/17 | 1.5 | 7 | 25 | Black | Voltage system, curvature, thickness can be adjusted, the battery folding method can choose positive folding or reverse folding |
| 150728 | 18/20 | 1.5 | 7 | 28 | Black | |
| 150730 | 20/22 | 1.5 | 7 | 30 | Black | |
| 155525 | 12/14 | 1.5 | 5.5 | 25 | Black | |
| 155528 | 16/17 | 1.5 | 5.5 | 28 | Black | |
| 201230 | 54/58 | 2.0 | 12 | 30 | Black | |
|
||||||
Tips for Using Curved Lithium Polymer Batteries:
Gentle Bending: Bend the battery gently within its specified bending radius to prevent damage to internal components.
Proper Installation: Ensure correct installation to avoid short circuits or performance issues.
Temperature Control: Avoid extreme temperatures to prevent overheating and maintain battery safety.
Handle with Care: Prevent physical damage like punctures or impacts to maintain battery integrity.
Use Compatible Chargers: Charge with recommended chargers to avoid damage from improper charging.
Regular Checks: Monitor for swelling, leaks, or odd smells and discontinue use if abnormalities are found.
Storage: Store in a cool, dry place away from heat and sunlight to preserve battery quality.
Disposal: Follow local regulations for safe disposal to protect the environment.
Stay Within Limits: Use within specified voltage and current ratings to avoid overloading
