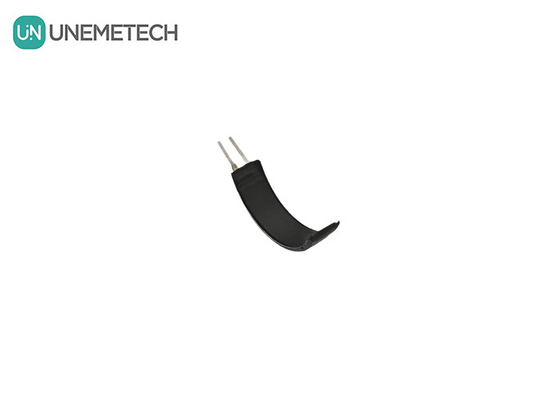

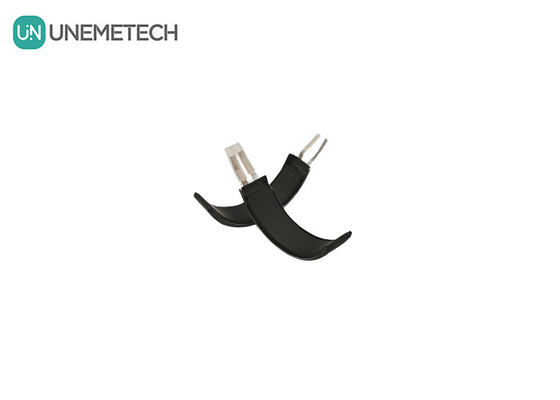

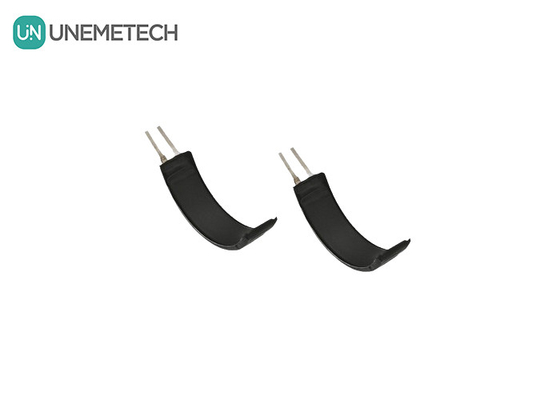

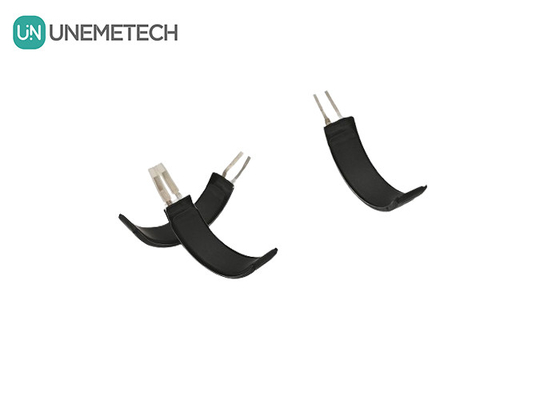

16mAh 3.7V 150726 Ultra Thin Curved Lithium Polymer Battery For Smart Bracelet

Curved Lipo Battery 16mAh 3.7V 150726 Ultra-thin Curved Lithium Polymer Battery for Smart bracelet

Features Overview of Curved Lithium Polymer Battery
Curved batteries, also known as arc/bend batteries, are a type of shaped battery, and curved batteries are also a type of lithium polymer battery, because lithium polymer batteries have a special gel electrolyte that can shape the battery, that's why arc cells can bend. Therefore, arc-shaped battery also has the advantages of high safety, no memory effect, low self-discharge, high voltage, high energy density, good charge-discharge cycle characteristics.

Application of Curved Lithium Polymer Battery
The use of curved batteries is most prominent among common consumer electronics, such as smart bracelets, thin waterproof bracelets, electronic keys, and Bluetooth headsets, curved surface electronic equipment, such as most of the above are using this curved-arc lithium battery on the device for power display. The application fields of arc-shaped batteries produced by different manufacturers are also different. At present, the main application fields of arc-shaped batteries in the market include smart wearable devices such as smart watches, smart wristbands, smart rings, etc. , it can also be applied to medical devices such as artificial limbs. The application fields of arc batteries have been expanded to various industries and fields, from civil to commercial and then to military, can be customized according to the actual needs of customers in line with the product and achieve mass production.bracelets, electronic keys, and Bluetooth headsets, curved surface electronic equipment, such as most of the above are using this curved-arc lithium battery on the device for power display.



Technical Parameters of Curved Lithium Polymer Battery

Model	Min Capacity(mAh)	Thickness(mm)	Width(mm)	Length(mm)	Color	Remark
150724	14	1.5	7	24	Silver/Black	curvature and thickness are adjustable, custom width and length require new mold
150726	16	1.5	7	26	Silver/Black
150728	18	1.5	7	28	Silver/Black
150730	20	1.5	7	30	Silver/Black
170724	18	1.7	7	24	Silver/Black
170726	20	1.7	7	26	Silver/Black
170728	22	1.7	7	28	Silver/Black
170730	24	1.7	7	30	Silver/Black

***Please contact us to get more detailed information and free samples***
