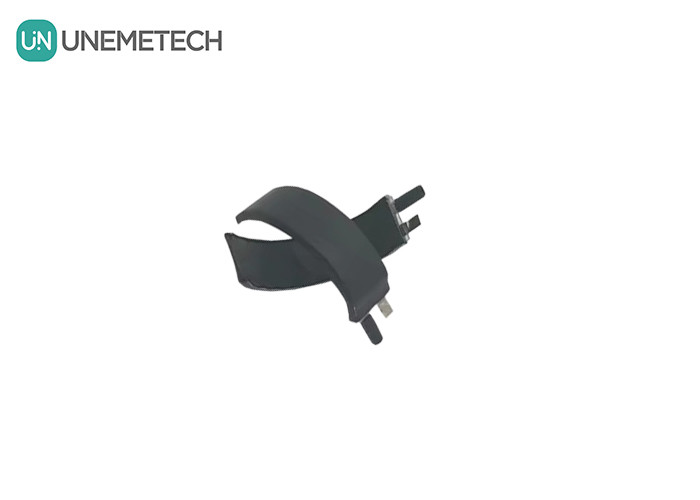

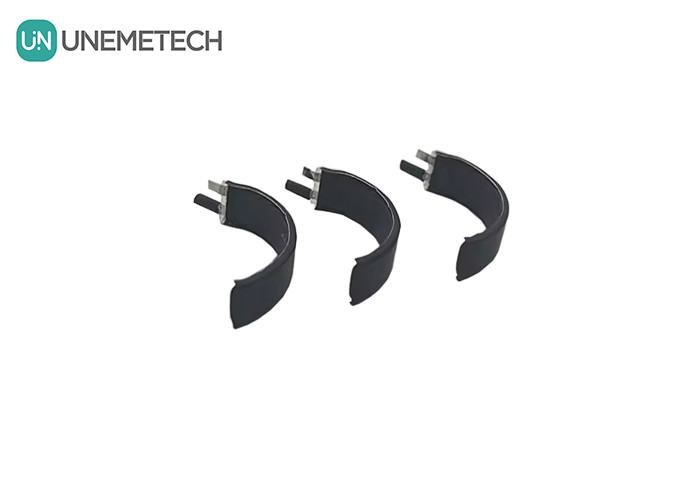

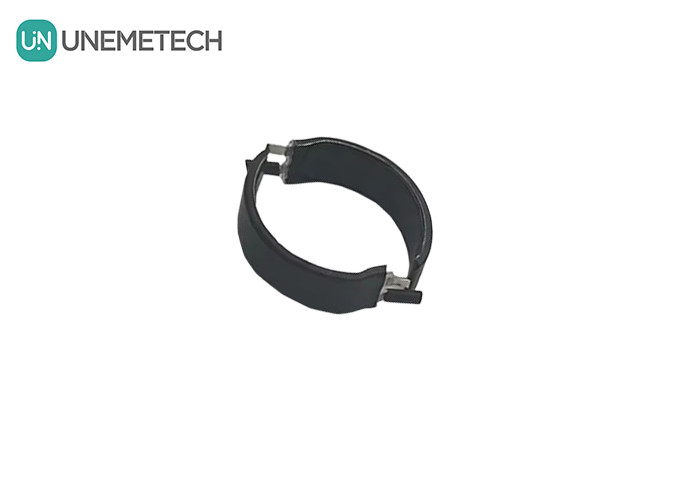

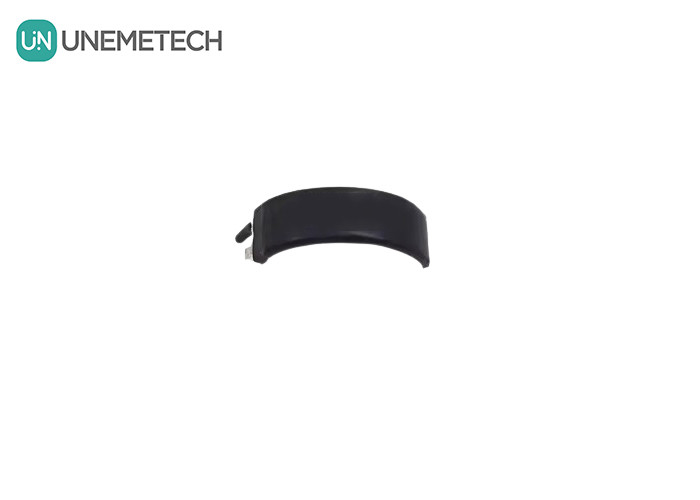

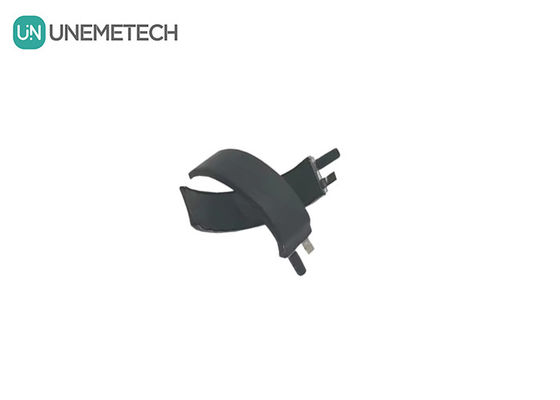

3.7V 20mAh Ultra Thin Curved LiPo Battery 150730 Flexible Lithium Polymer Battery

2000PCS
MOQ
1.5-2.8USD/PCS
Price
3.7V 20mAh Ultra Thin Curved LiPo Battery 150730 Flexible Lithium Polymer Battery
Features Gallery Product Description Request A Quote
Features
Specifications
Battery Type: Curved Battery
Nominal Voltage: 3.7V
Nominal Capacity: 20mAh
Charge Ending Voltage: 4.2V
Discharge Ending Voltage: 3.0V
Max Charge/Discharge Current: 1.0C(20mA)
Cell Impedance (V=3.9-4.0V): ≤1600mΩ
Operating Temperature: Charge: 0-45℃ / Discharge: -20-60℃
Maximum Cell Dimension: T:1.5mm W:7.0mm L:31.5mm
Cycle Life: ≥500 Cycles
Highlight:

Ultra Thin Curved LiPo Battery

,

3.7V 20mAh Flexible LiPo Battery

,

Flexible Lithium Polymer Battery 3.7V
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: UNEMETECH
Certification: UN38.3, MSDS, CE, CB, IEC62133, PSE, KC, UL1642...
Model Number: 150730
Payment & Shipping Terms
Packaging Details: Inner Tray + Inner Box + Outer Carton
Delivery Time: 3-30 days
Payment Terms: T/T , WorldFirst , Payoneer , PingPong , Paypal , Alipay , Western Union , ...
Supply Ability: 20,000.00 Pieces Per Day
Product Description



3.7V 20mAh Ultra-Thin Flexible Curved Lipo Cells 150730 Curved Battery for Smart Wearable Ring

Curved Lipo Battery 150730 Description

The 150730 ultra-thin flexible curved lithium polymer battery operates at 3.7V with a capacity of 20mAh, making it an ideal power source for smart wearable rings. Its ultra-thin and flexible design allows for seamless integration into compact wearables, ensuring both comfort and functionality. With a 20mAh capacity, this battery provides adequate energy for essential features, such as activity tracking and notifications, while maintaining a lightweight profile. The curved shape is specifically tailored to fit the contours of smart rings, enhancing user experience and aesthetic appeal. Overall, the 150730 battery is a reliable and efficient power solution for modern smart wearables.



Curved Lipo Battery 150730 Paramters

Model 150730
Product size 1.5mm*7.0mm*31.5mm(Thickness*Width*Length)
Nominal Voltage 3.7V
Minimum Capacity 20mAh
Charging Voltage 4.2V
Discharge Cut-off Voltage 3.0V
AC Impedance Resistance ≤1600mΩ
Standard charge current

4mA(0.2C)
Max. continuous Charge Current 20mA(1C)

Standard discharge current

 4mA(0.2C)
Max.continuous discharge current 20mA(1C)
Weight About 0.5g
Operating Temperature charge:0~+45℃/dischage:- 20~+60℃
Storage Temperature

less than 3 month:- 20~+35℃ Recovery capacity＞90%

less than 12 months:- 20~+30℃ Recovery capacity＞85%
Model Min Capacity(mAh) Thickness(mm) Width(mm) Length(mm) Color Remark
150724 14 1.5 7 24 Silver/Black curvature and thickness are adjustable, custom width and length require new mold
150726 16 1.5 7 26 Silver/Black
150728 18 1.5 7 28 Silver/Black
150730 20 1.5 7 30 Silver/Black
170724 18 1.7 7 24 Silver/Black
170726 20 1.7 7 26 Silver/Black
170728 22 1.7 7 28 Silver/Black
170730 24 1.7 7 30 Silver/Black
3.7V 20mAh Ultra Thin Curved LiPo Battery 150730 Flexible Lithium Polymer Battery 0


Curved Lipo Battery Application:

Smart wearable device/Smart ring...

3.7V 20mAh Ultra Thin Curved LiPo Battery 150730 Flexible Lithium Polymer Battery 1


Our Advantages:

◆ Over 10 years of li-polymer battery manufacture & export experience
◆ Professional R&D team supporting
◆ Excellent quality, advanced equipment and competitive prices
◆ Good package, cheap freight cost, faster delivery, best after-sales service
◆ OEM / ODM are welcome, we can customize different size to meet customer's requirements
◆ Long life cycle of charging & discharging

***Please contact us to get more detailed information and free samples***
3.7V 20mAh Ultra Thin Curved LiPo Battery 150730 Flexible Lithium Polymer Battery 2
