3.6V 3000mAh Max 20A Continuous Discharge 18650 Lithium Battery INR18650-30P for Electronic Tools
Description and Model
Description: Cell(Cylindrical Lithium-ion Cell), lithium-ion battery has a high energy density and high average output voltage. Self-discharge small, good battery, less than 2% per month (recoverable) . No memory effect. The operating temperature ranges from -20 ° C to 60 ° C. Excellent cycle performance, fast charge and discharge, charge efficiency up to 100% , and output power. Long service life. Does not contain toxic and harmful substances, known as green batteries.
Model: INR18650-30P
Site: Manufactured in Zhejiang, China
18650 Lithium Battery INR18650-30P Specification
| Model | INR18650-30P |
|
Nominal Capacity(Typical) |
3000mAh@0.2C |
|
Nominal Capacity(Minimum) |
2900mAh@0.2C |
| Nominal Voltage | 3.6V |
| Charging Voltage | 4.2V |
| Standard Charge Current | 0.5C |
| Max Continuous Charge Current | 6A |
| Discharge Cut-off Voltage | 2.5V |
| Standard Discharge Current | 0.2C |
| Max Continuous Discharge Current | 10A(Without 80 deg temperature cut) |
| 20A(With 80 deg temperature cut) | |
| Internal Resistance | 20mΩ(ACIR) |
|
Operating Environment (surface temperature) |
Charge, 0°C ~ 60°C |
| Discharge, -20°C~80°C | |
| Weight | ＜48g |
| Cell Dimension | Hight: 64.95mm±0.20mm; Diameter: 18.25mm±0.20mm |
| Storage Environment | 1 year: -20~25°C ≤70%RH |
| 3 months: -20~45°C ≤70%RH | |
| 1 month: -20~55° ≤70%RH | |
|
Outline Dimensions:
|
|
|

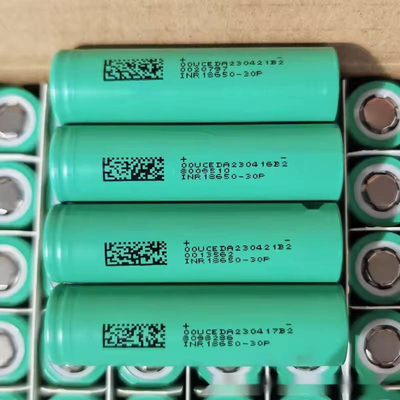

Package:
|
|
18650 Lithium Battery Applications
Lithium-ion batteries have a wide range of applications, including but not limited to:
1. Electric vehicle industry
2. Consumer electronics industry: Lithium-ion batteries are widely used in various portable electronic devices, such as mobile phones, laptops, tablets, drones, etc.
3. Energy storage industry: such as grid energy storage, home energy storage systems, etc.
4. Aerospace industry: such as satellites, spacecraft, drones, etc.
5. Medical equipment industry: such as pacemakers, blood glucose monitors, etc.
6. Military and security fields: such as unmanned reconnaissance aircraft, night vision equipment, etc.
 |
18650 Lithium Battery Advantages
1) Cells: A grade cells to make sure batteries in high and full capacity,
2). High-energy density,
3). Low self-discharge,
4). Low internal resistance,
5). Long cycle life, over 1000 times,
6) Certifications : UL, CE, CB, UN38.3, MSDS,...
