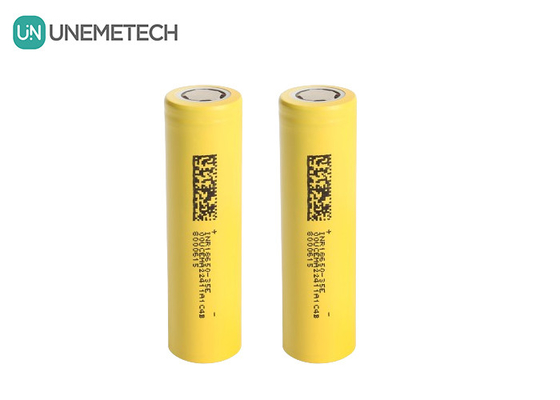

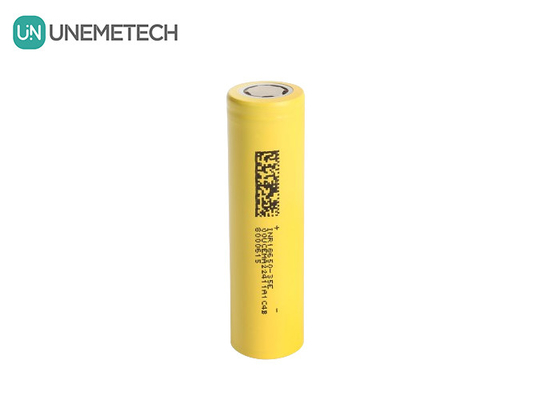

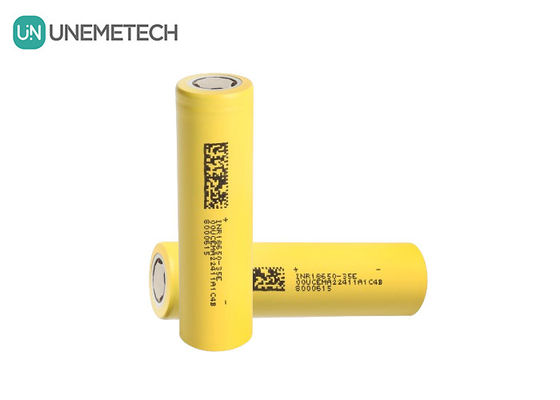

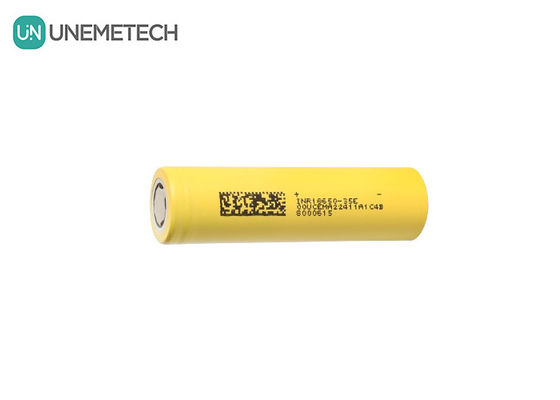

INR18650-35E 3500mAh 18650 Battery 10A 3.7V Cylindrical Lithium Ion Cell For Energy Storage System
| Battery Type: | 18650 Batteries | Nominal Capacity (Typical): | 3500mAh@0.2C |
| Nominal Capacity （Minimum）: | 3400mAh@0.2C | Nominal Voltage: | 3.7V |
| Charging Voltage: | 4.2V | Discharge Cut-off Voltage: | 2.5V |
| Standard Charge Current: | 0.5C | Standard Discharge Current: | 1C=3400mA |
| Max Discharge Current: | 10A | Cell Dimension: | Hight: 64.95mm±0.20mm; Diameter: 18.25mm±0.20mm |
| Weight: | ＜50g | Warranty: | 1 Year |
| High Light: | INR18650-35E,3500mAh 18650 Battery,3.7V Cylindrical Lithium Ion Cell |
||
INR18650-35E 3500mAh 18650 Battery 10A 3.7V Cylindrical Lithium ion Cell for Energy Storage System
INR18650-35E 3500mAh Advantages
1. Large capacity
2. Long life:
3. High safety performance
4. High voltage
5. No memory effect
6. Small internal resistance
7. Can be combined in series or parallel to form a 18650 lithium battery pack.
8. Wide range of uses: laptop computers, walkie-talkies, portable DVDs, instruments, audio equipment, model aircraft, toys, video cameras, digital cameras and other electronic equipment.
Description and Model
Description: Cell(Cylindrical Lithium-ion Cell)
Model: INR18650-35E
Site: Manufactured in Zhejiang, China
INR18650-35E 3500mAh Nominal Specification
| Model | INR18650-35E |
|
Nominal Capacity(Typical) |
3500mAh@0.2C |
|
Nominal Capacity(Minimum) |
3400mAh@0.2C |
| Nominal Voltage | 3.7V |
| Charging Voltage | 4.2V |
| Charging Method | CC-CV(0.5C, 4.2V, 50mA cut-off) |
| Standard(Continues) Charge Current | 0.5C |
| Discharge Cut-off Voltage | 2.5V |
| Standard Discharge Current | 1C=3400mA |
| Max Discharge Current | 10A |
| Internal Resistance | 30mΩ(ACIR) |
| Cycle Life | +0.5C/-1C Cap(800th)/Cap(Av10)≥70% |
|
Operating Environment (surface temperature) |
Charge, 0°C ~ 50°C |
| Discharge, -20°C~60°C | |
| Weight | ＜50g |
| Cell Dimension | Hight: 64.95mm±0.20mm; Diameter: 18.25mm±0.20mm |
| Storage Environment | 1 year: -20~25°C ≤70%RH |
| 3 months: -20~45°C ≤70%RH | |
| 1 month: -20~60° ≤70%RH | |
|
Outline Dimensions:
|
|
|
Package:
|
|
INR18650-35E 3500mAh Applications
The theoretical lifespan of the 18650 lithium battery is 1,000 cycles of charging. Due to the large capacity per unit density, most of them are used in laptop batteries. In addition, because 18650 has very good stability at work, it is widely used in various major electronic fields: often used in high-end bright flashlights, portable Power supplies, wireless data transmitters, electric thermal clothing and shoes, portable instruments, portable lighting equipment, portable printers, industrial instruments, medical instruments, etc.
Our Service
1). Professional lithium ion battery packs supplier for over ten years, and have our own factory,
2). Strong R&D team to support,
3). Offer OEM/ODM service for customer's order,
4). Quick reply and action,
5). Competitive price, good sale and after-sales service.
