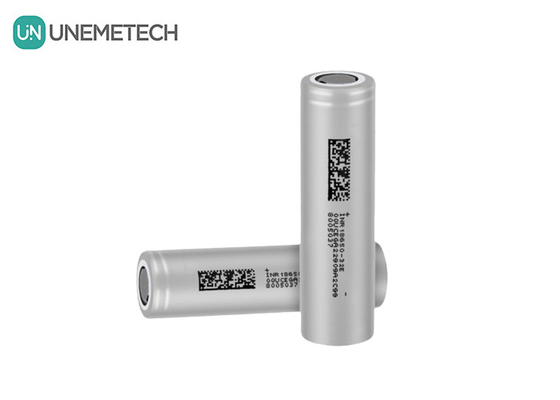

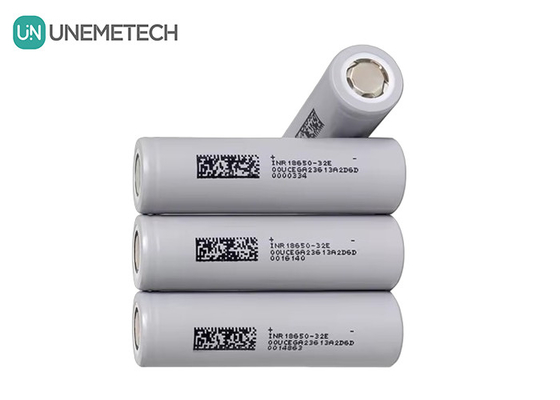

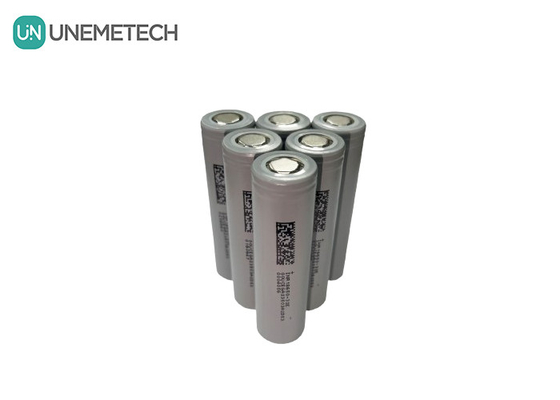

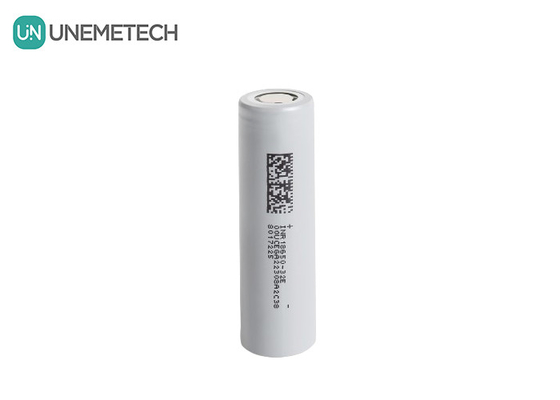

INR18650-32E 3200mAh 18650 Battery 10A 1000 Cycles 3.7V Cylindrical Lithium ion 18650 Battery
| Battery Type: | 18650 Batteries | Nominal Capacity (Typical): | 3200mAh@0.2C |
| Nominal Capacity （Minimum）: | 3100mAh@0.2C | Nominal Voltage: | 3.7V |
| Charging Voltage: | 4.2V | Discharge Cut-off Voltage: | 2.5V |
| Standard Charge Current: | 0.5C | Standard Discharge Current: | 1C |
| Max Discharge Current: | 10A | Cell Dimension: | Hight: 64.95mm±0.20mm; Diameter: 18.25mm±0.20mm |
| Weight: | ＜48g | Warranty: | 1 Year |
| High Light: | INR18650-32E,3200mAh 18650 Battery,Cylindrical Lithium ion 18650 Battery |
||
INR18650-32E 3200mAh 10A 1000 Cycles 3.7V Cylindrical Lithium ion Cell 18650 Battery
INR18650-32E 3200mAh Features Overview
18650 battery is a very common rechargeable battery with the following main characteristics:
1. Relatively high energy density;
2. Long cycle life;
3. Low self-discharge rate;
4. No need to completely drain and recharge;
5. High charging and discharging efficiency;
6. Advantages in environmental protection and safety.
Description and Model
Description: Cell(Cylindrical Lithium-ion Cell)
Model: INR18650-32E
Site: Manufactured in Zhejiang, China
INR18650-32E 3200mAh Technical Parameter
| Model | INR18650-32E |
|
Nominal Capacity(Typical) |
3200mAh@0.2C |
|
Nominal Capacity(Minimum) |
3100mAh@0.2C |
| Nominal Voltage | 3.7V |
| Charging Voltage | 4.2V |
| Charging Method | CC-CV(0.5C, 4.2V, 50mA cut-off) |
| Standard(Continues) Charge Current | 0.5C |
| Max Continues Charge Current | 1C(not for cycle life) |
| Discharge Cut-off Voltage | 2.5V |
| Standard Discharge Current | 1C |
| Max Discharge Current | 10A |
| Internal Resistance | 30mΩ(ACIR) |
| Cycle Life | +0.5C/-1C Cap(1000th)/Cap(Av10)≥70% |
|
Operating Environment (surface temperature) |
Charge, 0°C ~ 50°C |
| Discharge, -20°C~60°C | |
| Weight | ＜48g |
| Cell Dimension | Hight: 64.95mm±0.20mm; Diameter: 18.25mm±0.20mm |
| Storage Environment | 1 year: -20~25°C ≤70%RH |
| 3 months: -20~45°C ≤70%RH | |
| 1 month: -20~60° ≤70%RH | |
|
Outline Dimensions:
|
|
|

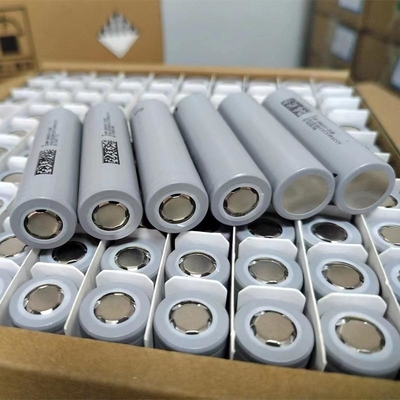

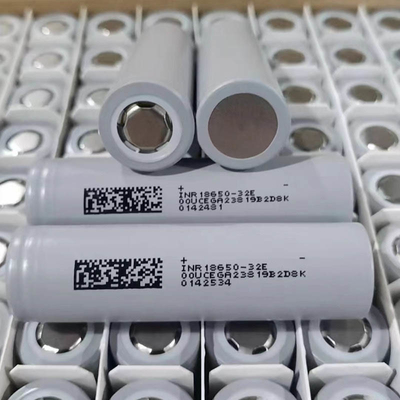

Package:
|
|
INR18650-32E 3200mAh Applications
18650 batteries has a wide range of applications: laptop computers, walkie-talkies, portable DVDs, instruments, audio equipment, model aircraft, toys, video cameras, digital cameras and other electronic equipment.
 |
Our Service
1). Professional lithium ion battery packs supplier for over ten years, and have our own factory,
2). Strong R&D team to support,
3). Offer OEM/ODM service for customer's order,
4). Quick reply and action,
5). Competitive price, good sale and after-sales service.
