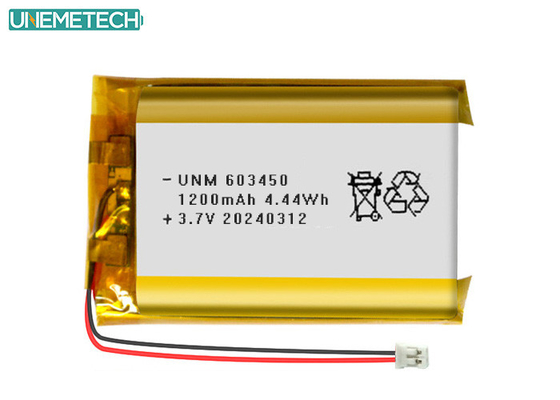

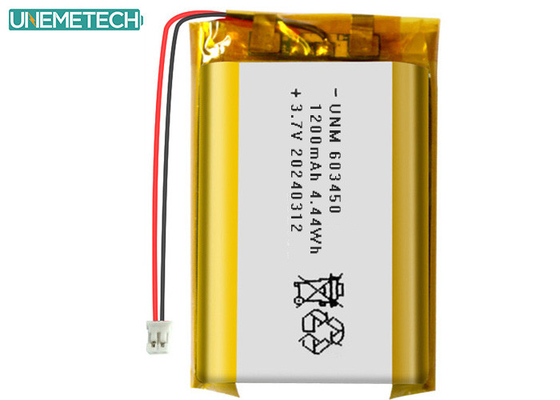

3.7V 1200mAh Rechargeable Lithium Polymer Battery 603450 with CE Approved for Electronics
Lithium Polymer Battery Description
ithium polymer battery (Li-Po), also known as lithium polymer battery, polylithium battery, is a type of lithium ion battery. Lithium-ion batteries are usually composed of several identical secondary cells to increase the discharge current, or several battery packs (packs) in series to increase the available voltage. LiPo battery has many advantages such as high specific energy, miniaturization, ultra-thin, lightweight and high safety. Based on such advantages, lithium polymer batteries can be made into batteries of any shape and capacity to meet the needs of various products; And it uses aluminum-plastic packaging, internal problems can be immediately displayed through the outer packaging, even if there is a security risk, it will not explode, only bulge. In polymer batteries, the electrolyte plays a dual function of the diaphragm and the electrolyte: on the one hand, like a diaphragm, it separates the positive and negative electrode materials, so that there is no self-discharge and short circuit inside the battery, and on the other hand, it conducts lithium ions between the positive and negative electrodes like an electrolyte. Polymer electrolyte not only has good electrical conductivity, but also has the characteristics of light weight, good elasticity, easy film formation and so on, which also conforms to the development trend of chemical power supply with light weight, safety, high efficiency and environmental protection
Lithium Polymer Battery 603450 Parameters
| Description: 603450 3.7V 1200mAh Li Polymer Battery | |||
| Battery Type | Li Polymer Battery | Material | LiCoO2/NCM |
| Model | 603450 | Nominal Voltage/Capacity | 3.7V/1200mAh |
| Discharging Cut-off Voltage | 3.0V | Internal Resistance | ≤180mΩ |
| Cell Weight | Approx 19.2g | Color&Shape | Silver, Prismatic |
| Battrey Cell Dimension |
MAX 6.0(T)x34.5(W)x50.5(L)mm |
Battery Pack Dimension | MAX 6.0(T)x34.5(W)x52.5(L)mm |
| Cycle Life | ≥ 500 times | Warranty | 1 Year |
| Charge Info | Charge Voltage : 4.2V | ||
| Standard Charge Current : 240mA/0.2C | |||
| Max Charge Current: 1200mA/1.0C (Customized) | |||
| Discharge Info | Discharge Cut-off Voltage : 3.0V | ||
| Standard Discharge Current : 240mA/0.2C | |||
| Max Discharge Current : 1200mA/1.0C (Customized) | |||
| Operating Temperature | Charge: 0℃~+45℃ | ||
| Discharge: -20℃~+60℃ | |||
|
|
|||
| T: 6mm max (include tap thickness) W: 34.5mm max L: 50.5mm max | |||
Lithium Polymer Battery 603450 Applications
Polymer lithium batteries are suitable for smart wearable devices, mobile power supplies, drones, smart homes, medical equipment, consumer Electronics and other fields.
Precautions for Use
1. Charging: Use a charger designed for polymer lithium batteries. Avoid overcharging.
2. Discharging: Prevent deep discharge by avoiding extremely low voltage levels. Most polymer lithium batteries have built-in protection circuits.
3. Temperature: Operate within the recommended temperature range provided by the manufacturer. Avoid exposing to extreme temperatures.
4. Physical Handling: Handle with care to avoid damage or leakage. Avoid impacts, punctures, or bending.
5. Compatibility: Ensure compatibility with your device in terms of voltage, capacity, and size.
6. Storage: Store in a cool, dry place away from direct sunlight. Avoid storing at full charge or completely discharged.
7. Disposal: Dispose of properly. Recycle at designated facilities or follow local regulations.
After-sales Service
1. After-sales warranty:
- According to the contract, we provide a certain warranty period for the exported lithium polymer batteries.
- During the warranty period, if the product has quality problems under normal use conditions, we will provide replacement or return service according to the after-sales policy.
2. Product quality assurance:
- We guarantee that the exported lithium polymer batteries comply with international quality standards and regulations, and undergo strict quality control and testing to ensure their performance and reliability.
- If you find product quality problems under normal use conditions, please contact us within the contractual warranty period, we will actively deal with it and provide solutions.
3. Problem solving:
- If you encounter any problems or have any complaints during the after-sales service, please contact our customer service team in time.
- We will be happy to provide you with support and actively seek solutions to your problems to ensure your satisfaction and good cooperative relationship.
UNEMETECH Advantages
◆ Over 10 years of li-polymer battery manufacture & export experience
◆ Professional R&D team supporting
◆ Excellent quality, advanced equipment and competitive prices
◆ Good package, cheap freight cost, faster delivery, best after-sales service
◆ OEM / ODM are welcome, we can customize different size to meet customer's requirements
◆ Long life cycle of charging & discharging
***Please contact us to get more detailed information and free samples***
