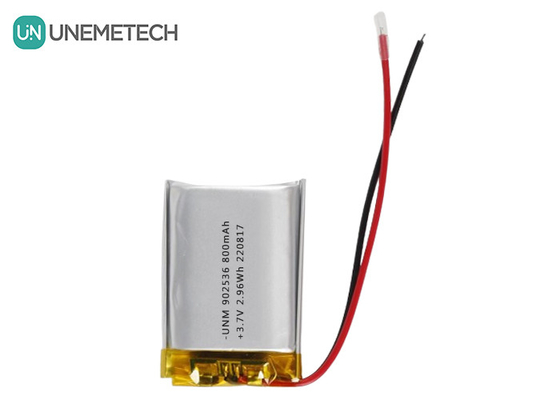

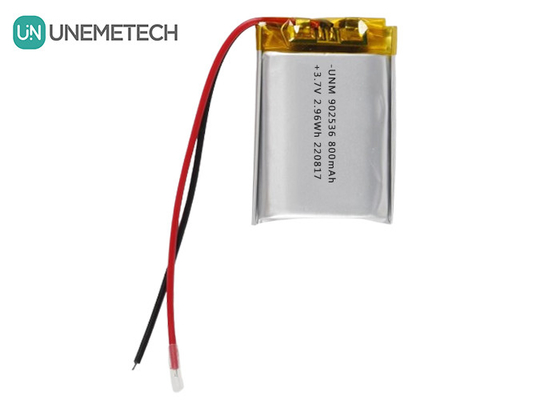

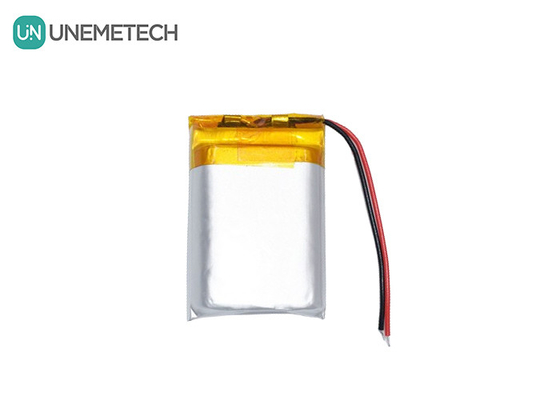

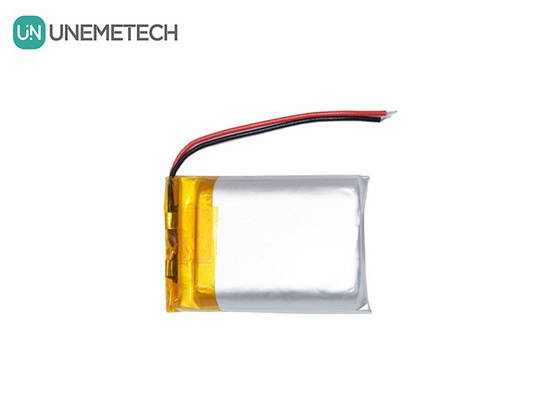

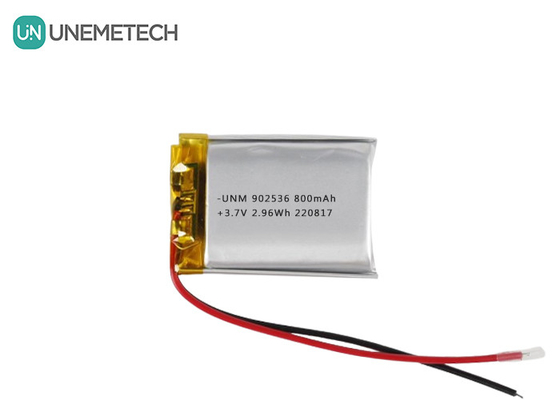

3.7V 800mAh Li Ion Polymer Battery 902536 Rechargeable Pouch Batterry for Gamepad
Lithium Polymer Battery 902536 Description
The 3.7V 800mAh rechargeable lithium-ion polymer pouch battery model 902536 is designed for gamepads, providing a reliable and efficient power source for extended gaming sessions. With a capacity of 800mAh, this battery ensures that users can enjoy longer playtime without the need for frequent recharging.
Its compact and lightweight design allows for seamless integration into gamepad structures, enhancing comfort and usability. The rechargeable feature supports multiple charge cycles, promoting sustainability and reducing waste.
Utilizing advanced lithium-ion polymer technology, the 902536 battery delivers stable voltage output, which is essential for consistent performance during gameplay. Built-in safety features protect against overheating and short circuits, ensuring safe operation. Overall, this battery is an excellent choice for powering gamepads effectively and reliably.
Lithium Polymer Battery 902536 Parameters
| Description: 902536 3.7V 800mAh Li-polymer Battery | |||
| Battery Type | Li-Polymer Battery | Material | LiCoO2/NCM |
| Model | 902536 | Nominal Voltage/Capacity | 3.7V/800mAh |
| Cell Weight | Approx 13.4g | Color&Shape | Silver, Prismatic |
| Battrey Cell Dimension | MAX 9.0(T)x25.0(W)x36.0(L)mm | Battery Pack Dimension | MAX 9.0(T)x25.0(W)x38.0(L)mm |
| Cycle Life | ≥ 500 times | Warranty | 1 Year |
| Charge Info | Charge Voltage : 4.2V | ||
| Standard Charge Current : 160mA/0.2C | |||
| Max Charge Current: 800mA/1.0C(Customized) | |||
| Discharge Info | Discharge Cut-off Voltage : 3.0V | ||
| Standard Discharge Current : 160mA/0.2C | |||
| Max Discharge Current : 800mA/1.0C(Customized) | |||
| Operating Temperature | Charge: 0℃~+45℃ | ||
| Discharge: -20℃~+60℃ | |||
 |
|||
Lithium Polymer Battery 902536 Features
• Temperature Tolerance: Operates effectively across various temperature ranges.
• Environmentally Friendly: Free from harmful metals like cadmium or mercury.
• Low Self-Discharge Rate: Maintains charge when not in use, ensuring power availability.
• Versatile Applications: Suitable for a variety of portable electronic devices.
• Rapid Recharge Capability: Charges quickly to minimize charging times.
• Customizable: Can be tailored in terms of shape and size to fit specific device requirements.
Lithium Polymer Battery 902536 Applications
Toys, Power Tools, Wireless Home Appliances, Camera, Consumer Electronics, GPS, Drone, Gamapad, Bluetooth Speaker, Pet Tracker, Smart Glasses, Electric Wheelchairs, Beauty Instruments, Headset, Solar Energy Storage Systems.
Precautions for Use
1. Charging: Use a charger designed for polymer lithium batteries. Avoid overcharging.
2. Discharging: Prevent deep discharge by avoiding extremely low voltage levels. Most polymer lithium batteries have built-in protection circuits.
3. Temperature: Operate within the recommended temperature range provided by the manufacturer. Avoid exposing to extreme temperatures.
4. Physical Handling: Handle with care to avoid damage or leakage. Avoid impacts, punctures, or bending.
5. Compatibility: Ensure compatibility with your device in terms of voltage, capacity, and size.
6. Storage: Store in a cool, dry place away from direct sunlight. Avoid storing at full charge or completely discharged.
7. Transportation: Comply with transportation regulations and guidelines.
8. Disposal: Dispose of properly. Recycle at designated facilities or follow local regulations.
After-sales Service:
1. After-sales warranty:
- According to the contract, we provide a certain warranty period for the exported lithium polymer batteries.
- During the warranty period, if the product has quality problems under normal use conditions, we will provide replacement or return service according to the after-sales policy.
2. Product quality assurance:
- We guarantee that the exported lithium polymer batteries comply with international quality standards and regulations, and undergo strict quality control and testing to ensure their performance and reliability.
- If you find product quality problems under normal use conditions, please contact us within the contractual warranty period, we will actively deal with it and provide solutions.
3. Problem solving:
- If you encounter any problems or have any complaints during the after-sales service, please contact our customer service team in time.
- We will be happy to provide you with support and actively seek solutions to your problems to ensure your satisfaction and good cooperative relationship.
Our Advantages
◆ Over 10 years of li-polymer battery manufacture & export experience
◆ Professional R&D team supporting
◆ Excellent quality, advanced equipment and competitive prices
◆ Good package, cheap freight cost, faster delivery, best after-sales service
◆ OEM / ODM are welcome, we can customize different size to meet customer's requirements
◆ Long life cycle of charging & discharging
***Please contact us to get more detailed information and free samples***
