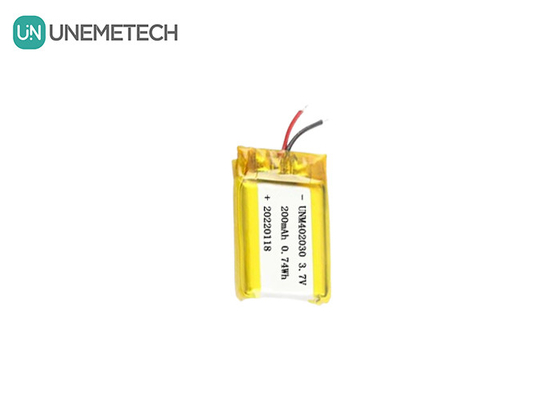

Small Size 402030 3.7V 200mAh Rechargeable Lipo Battery for Electronic Products

5000PCS
MOQ
0.8-1.5USD/PCS
Price
Small Size 402030 3.7V 200mAh Rechargeable Lipo Battery for Electronic Products
Features Gallery Product Description Request A Quote
Features
Specifications
Battery Type: Rechargeable Lipo Battery
Nominal Capacity: 200mAh
Nominal Voltage: 3.7V
Charging Volatge: 4.2V
Max Charging Current: 200mA(1.0C-4.2V)
Max Discharging Current: 200mA(1.0C-3.0V)
Battery Cell Size: MAX 4.0(T)x20.5(W)x30.0(L)mm
Weight: Appr. 3.5g
Cycle Life: ≥500 Times
Warranty: 1 Year
Highlight:

Electronic Products Lipo Battery

,

3.7V 200mAh Lipo Battery

,

Small Size Lipo Battery

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: UNEMETECH
Certification: UN38.3, MSDS, CE, CB, IEC62133, PSE, KC, UL1642...
Model Number: UNM402030
Payment & Shipping Terms
Packaging Details: Inner Tray + Inner Box + Outer Carton
Delivery Time: 7-35 days
Payment Terms: T/T , WorldFirst , Payoneer , PingPong , Paypal , Alipay , Western Union , ...
Supply Ability: 200,000.00 Pieces Per Day
Product Description



Small Size 402030 3.7V 200mAh Rechargeable Lipo Battery for Electronic Products

Features Overview of Rechargeable LiPo Battery

Large capacity density, small self-discharge, long life, good safety, no memory effect, small thickness, thin, light weight, large capacity, small internal resistance, good discharge characteristics, simple design, shape can be customized.

Application of Rechargeable LiPo Battery
The polymer lithium battery has a broad development prospect. With the development of technology and new energy market, polymer lithium battery has been widely used in many fields because of its lightweight, high energy density and long life. In the future, polymer lithium batteries will play a more important role in electric vehicles, wearable devices, internet of things and other fields.
Small Size 402030 3.7V 200mAh Rechargeable Lipo Battery for Electronic Products 0

Technical Parameters of Rechargeable LiPo Battery

Description:402030 3.7V 200mAh
Battery Type Rechargeable LiPo Battery Material LiCoO2
Model 402030 Nominal Voltage/Capacity 3.7V/200mAh
Weight Approx 3.5g Color&Shape Silver Cell, Prismatic
Battrey Cell Dimension MAX 4.0(T)x20.5(W)x30.0(L)mm Battery Pack Dimension

MAX
4.0(T)x20.5(W)x32.0(L)mm

Cycle Life ≥ 500 times Warranty 1 Year
Charge Info Charge Voltage : 4.2V
Standard Charge Current : 40mA/0.2C
Max Charge Current: 200mA(1.0C-4.2V)
Discharge Info Discharge Cut-off Voltage : 3.0V
Standard Discharge Current : 40mA/0.2C
Max Discharge Current : 200mA(1.0C-3.0V)
Operating Temperature Charge: 0℃~+45℃
Discharge: -20℃~+60℃

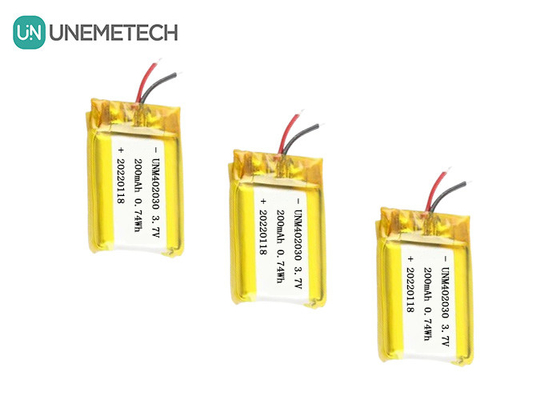

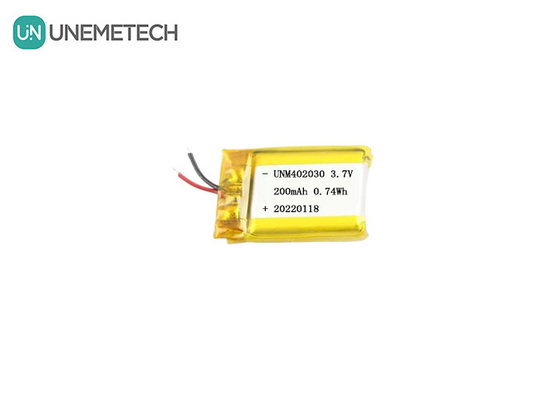

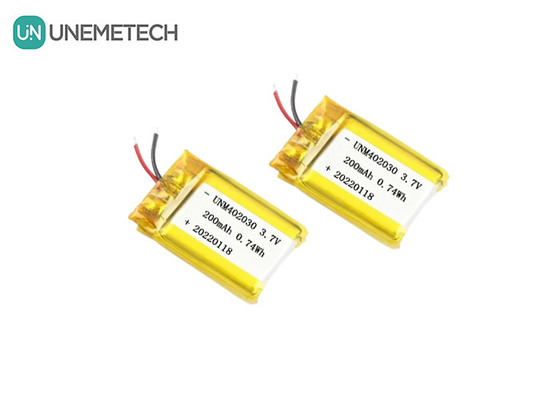

Feature Picture of Rechargeable LiPo Battery

Small Size 402030 3.7V 200mAh Rechargeable Lipo Battery for Electronic Products 1
Small Size 402030 3.7V 200mAh Rechargeable Lipo Battery for Electronic Products 2



Precautions for Use

1. Charging: Use a charger designed for polymer lithium batteries. Avoid overcharging.
2. Discharging: Prevent deep discharge by avoiding extremely low voltage levels. Most polymer lithium batteries have built-in protection circuits.
3. Temperature: Operate within the recommended temperature range provided by the manufacturer. Avoid exposing to extreme temperatures.
4. Physical Handling: Handle with care to avoid damage or leakage. Avoid impacts, punctures, or bending.
5. Compatibility: Ensure compatibility with your device in terms of voltage, capacity, and size.
6. Storage: Store in a cool, dry place away from direct sunlight. Avoid storing at full charge or completely discharged.
7. Transportation: Comply with transportation regulations and guidelines.
8. Disposal: Dispose of properly. Recycle at designated facilities or follow local regulations.



After-sales Service

1. After-sales warranty:
- According to the contract, we provide a certain warranty period for the exported lithium polymer batteries.
- During the warranty period, if the product has quality problems under normal use conditions, we will provide replacement or return service according to the after-sales policy.

2. Product quality assurance:
- We guarantee that the exported lithium polymer batteries comply with international quality standards and regulations, and undergo strict quality control and testing to ensure their performance and reliability.
- If you find product quality problems under normal use conditions, please contact us within the contractual warranty period, we will actively deal with it and provide solutions.

3. Problem solving:
- If you encounter any problems or have any complaints during the after-sales service, please contact our customer service team in time.
- We will be happy to provide you with support and actively seek solutions to your problems to ensure your satisfaction and good cooperative relationship.



Our Advantages

◆ Over 10 years of li-polymer battery manufacture & export experience
◆ Professional R&D team supporting
◆ Excellent quality, advanced equipment and competitive prices
◆ Good package, cheap freight cost, faster delivery, best after-sales service
◆ OEM / ODM are welcome, we can customize different size to meet customer's requirements
Long life cycle of charging & discharging



The size of lithium polymer battery can be customized. We have advantage making special Li-Po battery such as extremely thin Li-Po battery , curved battery, high temperature Li-Po battery, low temperature Li-Po battery and special shape Li-Po battery (round)

***Please contact us to get more detailed information and free samples***

Small Size 402030 3.7V 200mAh Rechargeable Lipo Battery for Electronic Products 3
