853639 4.35V 1700mAh Polymer High Voltage Li ion Battery for Body-worn Camera with Long Cycle Life
3.8V High Voltage Lipo Battery Description
The 853639 polymer lithium-ion battery operates at 4.35V with a capacity of 1700mAh, making it an excellent choice for body-worn cameras. This high voltage battery is designed to provide reliable power while ensuring extended operational time, crucial for capturing high-quality video in demanding situations.
With a capacity of 1700mAh, it supports long usage periods, reducing the need for frequent recharging. The battery is engineered for a long cycle life, enhancing durability and reliability, which is essential for devices used in various environments. Its compact form factor allows for easy integration into body-worn cameras, ensuring that the device remains lightweight and unobtrusive. Overall, the 853639 battery is a dependable power solution that enhances the performance and longevity of body-worn camera systems.
Features Overview of 3.8V High Voltage Lipo Batteries
1. The consistency of the cell is high, can achieve a certain number of series and parallel use;
2. The cell energy density is high, unit cell capacity is high;
3. High stability and safety in application;
4. Long cycle life under high rate discharge conditions;
5. Pass acupuncture safety test standards.
Application of 3.8V High Voltage Lipo Batteries
High voltage polymer lithium-ion battery are widely used in unmanned aerial vehicles, robots, model cars, small ships, kayaks and logistics vehicles, it is important to provide customized battery service based on the actual application of the customer's product. Custom batteries include an all-in-one application customization service from the cell to the BMS, then to the structural design, and finally to the battery pack.
Technical Parameters of 3.8V High Voltage Lipo Batteries
| Description:853639 3.8V 1700mAh | |||
| Battery Type | 3.8V Li-polymer Battery | Material | LiCoO2 |
| Model | 853639 | Nominal Voltage/Capacity | 3.8V/1700mAh |
| Weight | Approx 27.3g | Color&Shape | Silver, Prismatic |
| Battery Cell Dimension | MAX 8.5(T)x36.0(W)x39.0(L)mm | Battery Pack Dimension |
MAX 8.5(T)x36.0(W)x39.0(L)mm |
| Cycle Life | ≥ 500 times | Warranty | 1 Year |
| Charge Info | Charge Voltage : 4.35V | ||
| Standard Charge Current : 340mA/0.2C | |||
| Max Charge Current: 1700mA/1.0C | |||
| Discharge Info | Discharge Cut-off Voltage : 3.0V | ||
| Standard Discharge Current : 340mA/0.2C | |||
| Max Discharge Current : 1700mA/3.0V | |||
| Operating Temperature | Charge: 0℃~+40℃ | ||
| Discharge: -20℃~+60℃ | |||

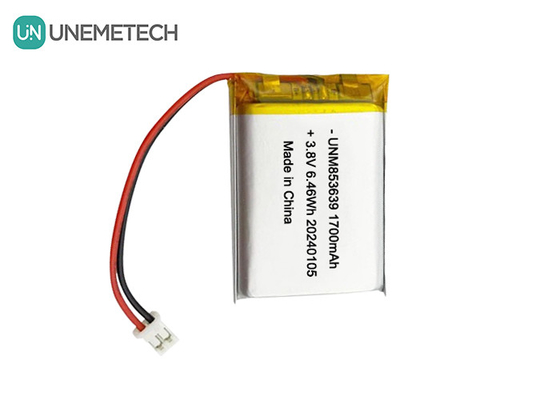

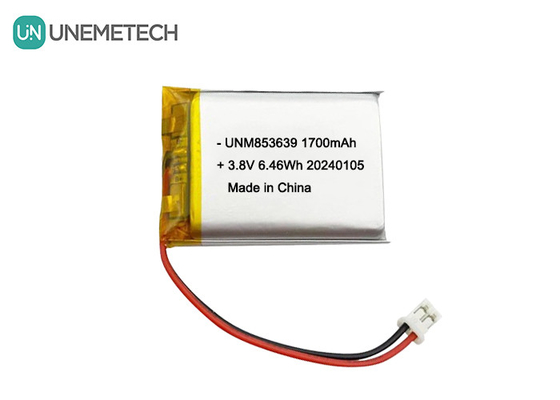

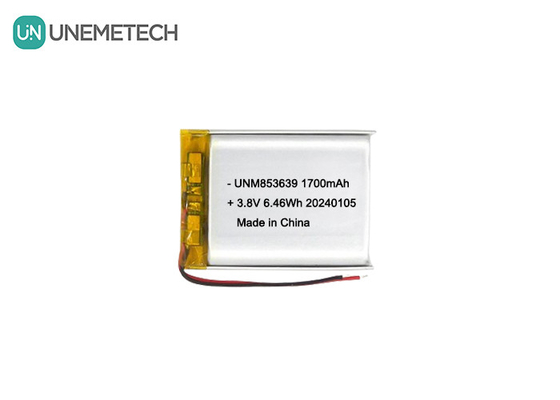

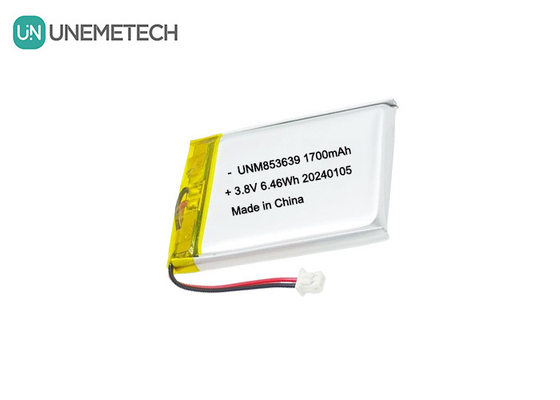

Feature Picture of 3.8V High Voltage Lipo Batteries
Precautions for Use
1. Charging: Use a charger designed for polymer lithium batteries. Avoid overcharging.
2. Discharging: Prevent deep discharge by avoiding extremely low voltage levels. Most polymer lithium batteries have built-in protection circuits.
3. Temperature: Operate within the recommended temperature range provided by the manufacturer. Avoid exposing to extreme temperatures.
4. Physical Handling: Handle with care to avoid damage or leakage. Avoid impacts, punctures, or bending.
5. Compatibility: Ensure compatibility with your device in terms of voltage, capacity, and size.
6. Storage: Store in a cool, dry place away from direct sunlight. Avoid storing at full charge or completely discharged.
7. Transportation: Comply with transportation regulations and guidelines.
8. Disposal: Dispose of properly. Recycle at designated facilities or follow local regulations.
After-sales Service
1. After-sales warranty:
- According to the contract, we provide a certain warranty period for the exported lithium polymer batteries.
- During the warranty period, if the product has quality problems under normal use conditions, we will provide replacement or return service according to the after-sales policy.
2. Product quality assurance:
- We guarantee that the exported lithium polymer batteries comply with international quality standards and regulations, and undergo strict quality control and testing to ensure their performance and reliability.
- If you find product quality problems under normal use conditions, please contact us within the contractual warranty period, we will actively deal with it and provide solutions.
3. Problem solving:
- If you encounter any problems or have any complaints during the after-sales service, please contact our customer service team in time.
- We will be happy to provide you with support and actively seek solutions to your problems to ensure your satisfaction and good cooperative relationship.
Our Advantages
◆ Over 10 years of li-polymer battery manufacture & export experience
◆ Professional R&D team supporting
◆ Excellent quality, advanced equipment and competitive prices
◆ Good package, cheap freight cost, faster delivery, best after-sales service
◆ OEM / ODM are welcome, we can customize different size to meet customer's requirements
◆ Long life cycle of charging & discharging
***Please contact us to get more detailed information and free samples***
