OEM LiPo Battery 321518 3.8V 70mAh High Voltage Battery For GPS Tracker

Basic Properties
Place of Origin: Guangdong, China
Brand Name: UNEMETECH
Certification: UN38.3, MSDS, CE, CB, IEC62133, PSE, KC, UL1642...
Model Number: UNM321518
Trading Properties
Minimum Order Quantity: 5,000 pcs
Price: US$0.80–1.50/piece
Payment Terms: T/T,WorldFirst,PingPong,Western Union,Xtransfer,L/C
Supply Ability: 200,000 pieces per day
Specifications
Battery Type: High Voltage LiPo Battery Typical Capacity: 70mAh
Nominal Voltage: 3.8V Charge Voltage: 4.35V
Max. Battery Dimensions: 3.3 × 15.5 × 20.0 Mm Max. Cell Dimensions: 3.2 × 15.0 × 18.0 Mm
Cycle Life: ≥500 Cycles Warranty: 1 Year
High Light:

OEM LiPo Battery

,

High Voltage LiPo Battery 321518

,

GPS Tracker Battery

Product Description
OEM LiPo Battery 321518 3.8V 70mAh High Voltage Battery For GPS Tracker
LiPo Battery 321518 Overview

The 321518 battery is an ultra-compact rechargeable LiPo battery features a nominal voltage of 3.8V and a capacity of 70mAh. With compact dimensions of 3.3 × 15.5 × 20.0 mm, it is specifically designed for GPS Trackers, small wearable electronic devices , and other space-constrained portable electronics.

As a 3.8V high-voltage lithium polymer battery, the 321518 battery provides stable power output, low self-discharge, high energy density, and reliable cycle life.

Customized battery packs with PCM/BMS protection circuits, connectors, cables, and customized specifications are available to meet specific application and product design requirements.

LiPo Battery 321518 Technical Parameters
Basic Parameters
Battery Type LiPo Battery
Model Number 321518
Nominal Voltage 3.8V
Nominal Capacity 65mAh (Minimum) | 70mAh (Typical)
Cell Energy 0.266Wh
Cell Chemistry LiCoO₂ / NCM (Customizable)
Cell Dimensions (Max) 3.2 × 15.0 × 18.0 mm
Pack Dimensions (Max) 3.3 × 15.5 × 20.0 mm
Weight Approx. 1.5g
Battery Pack Internal Impedance ≤ 500 mΩ
Shipment Voltage 3.80–4.0V (Adjustable upon request)
Charge & Discharge Parameters
Max Charge Voltage 4.35V
Standard Charge Current 0.2C / 4.35V
Max Charge Current 1.0C | 4.35V
Discharge Cut-off Voltage 3.0V
Standard Discharge Current 0.2C / 3.0V
Max Continuous Discharge Current 1.0C | 3.0V
Operating Temperature Charge: 0–45 °C | Discharge: -20–60 °C
LiPo Battery 321518 Dimensions
321518 3.8V High Voltage LiPo Battery Dimensions
Max. Cell Dimensions: 4.2 × 15.0 × 18.0mm Plug wire: UL3302AWG32 | 20±3mm (Adjustable)
Max. Pack Dimensions: 3.3 × 15.5 × 20.0mm  PCM Protection: HY2113-OB1B IC + 8205 MOSFET

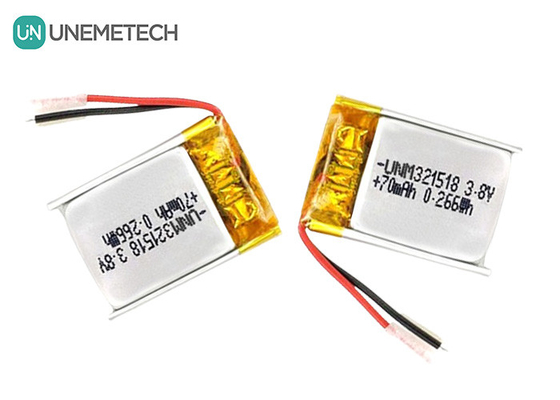

321518 LiPo Battery image
LiPo Battery 321518 Applications

The 321518 high voltage OEM LiPo battery is specifically designed for compact, lightweight, and rechargeable electronic devices. Its compact dimensions, stable voltage platform, and reliable cycle performance make it an ideal power solution for gps trackers, wearable electronics, and other portable electronic devices.

Typical applications include:

  • GPS trackers
  • Smart medical wristbands and patient monitoring systems
  • Healthcare tracking devices and wellness monitoring equipment
  • Smart fitness bands and wearable electronics
  • Bluetooth-enabled healthcare accessories
  • Wireless medical sensors and monitoring modules
  • Personal healthcare electronics

oem lipo battery applications

Custom configurations, including PCM/BMS protection circuits, connectors, and cable options, are available to ensure safe integration into your specific product requirements.

Quality & Safety Certifications

All UNEMETECH LiPo Batteries undergo strict quality control and comply with international safety & transportation standards, ensuring safe and reliable performance worldwide.

Depending on project requirements and target market regulations, we can provide certification documents such as CB, IEC 62133, UN38.3, MSDS, KC, PSE, BSMI, UL, RCM, CE, REACH, and RoHS test reports, and other compliance documentation as required.

UNEMETECH Lithium Polymer Battery Certifications and Reports

Typical Customer Feedback
“We've partnered with UNEMETECH for our GPS tracker project. The 321518 high-voltage LiPo battery delivers stable voltage, reliable capacity, and excellent consistency across production batches. As a compact lithium polymer battery for GPS trackers, it fits perfectly within our product design, while the long cycle life helps ensure dependable daily operation. UNEMETECH’s engineering team provided prompt technical support and customized battery solutions that greatly simplified our product development process. We look forward to continuing our cooperation on future GPS battery projects.”

— Project Manager, Trackers Manufacturer
Customized LiPo Battery Solutions

UNEMETECH specializes in customized LiPo battery solutions for GPS trackers, wearable electronics, healthcare electronics, smart wristbands, and other compact portable products. We offer customized PCM/BMS protection circuits, connectors, cable lengths, labels, and battery pack assemblies to ensure seamless integration into your device.

From prototype development to mass production, our experienced engineering team provides professional technical support, reliable manufacturing, and flexible customization services to meet the requirements of medical and wearable electronic applications.
