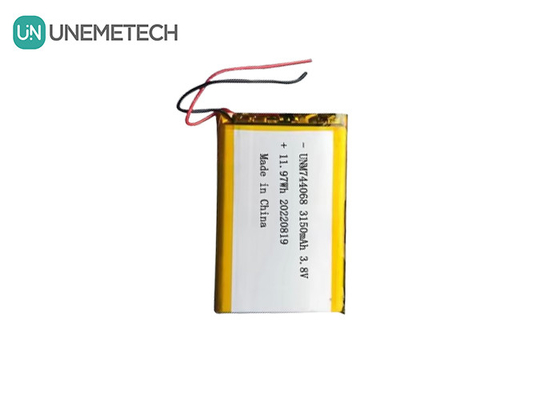

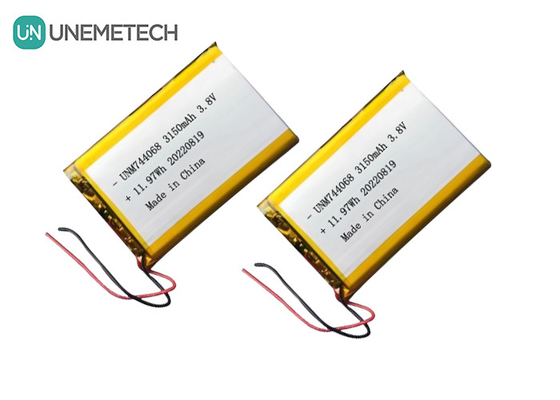

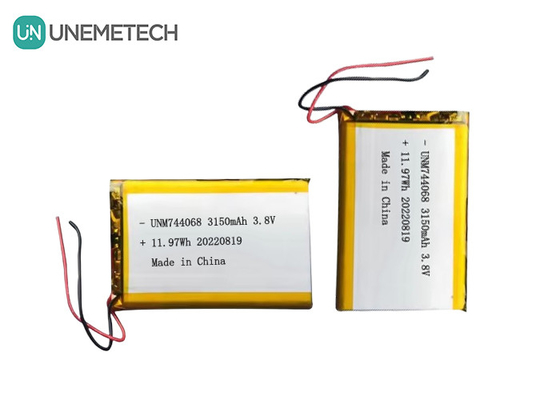

Factory Rechargeable High Voltage Lipo Battery 3.8V 744068 3150mAh For GPS Tracking System
3.8V High Voltage Lipo Battery Description
The factory rechargeable high voltage LiPo battery 3.8V, 744068 offers a robust capacity of 3150mAh, making it ideal for GPS tracking systems. This battery provides reliable and long-lasting power, ensuring consistent operation for tracking devices. Its high voltage output enhances performance, allowing for efficient energy use in portable applications. The compact design ensures easy integration into GPS units, while the rechargeable feature promotes sustainability. This battery is an excellent choice for enhancing the reliability and duration of GPS tracking systems.
3.8V High Voltage Battery 744068 Parameters
|
Description:744068 3.8V 3150mAh |
|||
|
Battery Type |
High Voltage LiPo Battery |
Material |
LiCoO2/NCM |
|
Model |
744068 |
Nominal Voltage/Capacity |
3.8V/3150mAh |
|
Weight |
Approx 57.0g |
Color&Shape |
Silver, Prismatic |
|
Battrey Cell Dimension |
MAX 7.4(T)x40.0(W)x68.5(L)mm |
Battery Pack Dimension |
MAX |
|
Cycle Life |
≥ 500 times |
Warranty |
1 Year |
|
Charge Info |
Charge Voltage : 4.35V |
||
|
Standard Charge Current : 630mA/0.2C |
|||
|
Max Charge Current: 3150mA/1.0C |
|||
|
Discharge Info |
Discharge Cut-off Voltage : 3.0V |
||
|
Standard Discharge Current : 630mA/0.2C |
|||
|
Max Discharge Current : 3150mA/1.0C |
|||
|
Operating Temperature |
Charge: 0℃~+40℃ |
||
|
Discharge: -20℃~+60℃ |
|||
|
|
|||
High Voltage Lipo Battery Application
High Voltage Lipo Battrey Advantages
The core technology of High Voltage Lipo Battery is high voltage electrolyte system. Compared with traditional lithium-ion batteries, High Voltage Lipo Batteries use a more stable and safer polymer electrolyte material, allowing the battery to operate at higher voltages. This high voltage electrolyte system can not only improve the energy density of the battery, but also reduce the internal resistance and energy loss of the battery, thereby improving the efficiency and cycle life of the battery.
Precautions for Use
1. Charging: Use a charger designed for polymer lithium batteries. Avoid overcharging.
2. Discharging: Prevent deep discharge by avoiding extremely low voltage levels. Most polymer lithium batteries have built-in protection circuits.
3. Temperature: Operate within the recommended temperature range provided by the manufacturer. Avoid exposing to extreme temperatures.
4. Physical Handling: Handle with care to avoid damage or leakage. Avoid impacts, punctures, or bending.
5. Compatibility: Ensure compatibility with your device in terms of voltage, capacity, and size.
6. Storage: Store in a cool, dry place away from direct sunlight. Avoid storing at full charge or completely discharged.
7. Transportation: Comply with transportation regulations and guidelines.
8. Disposal: Dispose of properly. Recycle at designated facilities or follow local regulations.
After-sales Service
1. After-sales warranty:
- According to the contract, we provide a certain warranty period for the exported lithium polymer batteries.
- During the warranty period, if the product has quality problems under normal use conditions, we will provide replacement or return service according to the after-sales policy.
2. Product quality assurance:
- We guarantee that the exported lithium polymer batteries comply with international quality standards and regulations, and undergo strict quality control and testing to ensure their performance and reliability.
- If you find product quality problems under normal use conditions, please contact us within the contractual warranty period, we will actively deal with it and provide solutions.
3. Problem solving:
- If you encounter any problems or have any complaints during the after-sales service, please contact our customer service team in time.
- We will be happy to provide you with support and actively seek solutions to your problems to ensure your satisfaction and good cooperative relationship.
Our Advantages
◆ Over 10 years of li-polymer battery manufacture & export experience
◆ Professional R&D team supporting
◆ Excellent quality, advanced equipment and competitive prices
◆ Good package, cheap freight cost, faster delivery, best after-sales service
◆ OEM / ODM are welcome, we can customize different size to meet customer's requirements
◆ Long life cycle of charging & discharging
***Please contact us to get more detailed information and free samples***
