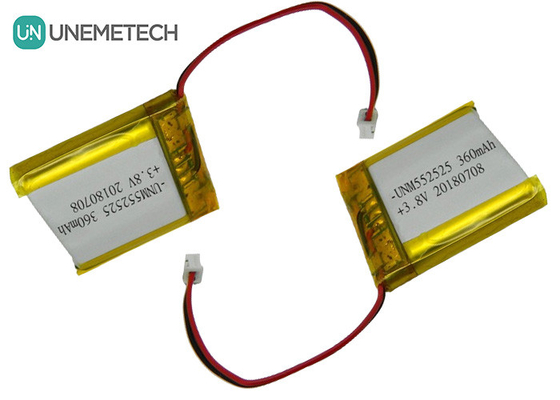

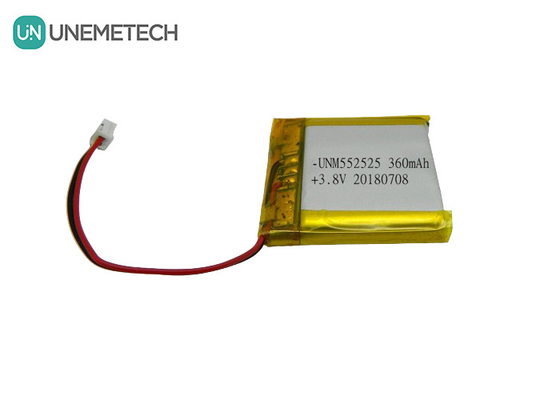

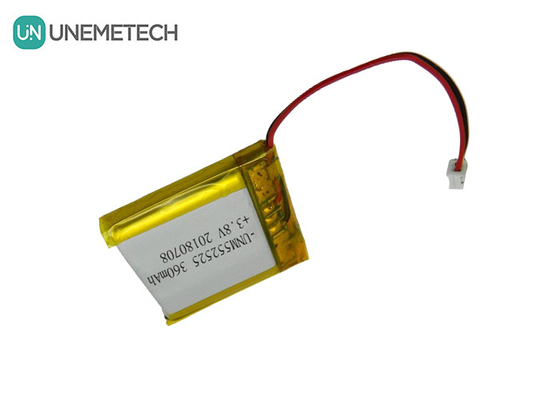

UNEMETECH 4.35V 360mAh Polymer High Voltage Lithium Ion Battery 552525 3.8V for Portable Devices
552525 4.35V 360mAh High Voltage Battery Specification
| Battery Cell Model | UNM552525 | |
| Nominal Voltage | 3.8V | |
| Nominal Capacity | 360mAh | |
| Internal Resistance | ≤130mΩ | |
| Maximum Charge Voltage | 4.35V | |
| Standard Charge/Discharge Current | 0.2C | |
| Fast Charge/Discharge Current | 1.0C | |
| Standard/Fast ChargeCut-off Voltage | 4.35V | |
| Standard/Fast Discharge Cut-off Voltage | 3.0V | |
| Charging Method | CC/CV | |
| Cycle Life | 500times+ | |
| Operating Temperature | Charge | 0℃~45℃ |
| Discharge | -20℃~60℃ | |
High Voltage Battery Advantages
1. High energy density
2. Excellent security: no fire, no explore of short-circuit, over-charge, over-discharge, over-current, shock, vibration, crush, acupuncture.
3. Long cycle life: capacity recovery can be above 85% after 500 cycles
4. Environment-friendly
5. Flexible size design subject to different space of application
6. Hundreds of moulds for micro size with 8mAh-10000mAh
To be more Flexible & More Models than others
Thousands model for you choose
Customized size is allowed
 |
High Voltage Battery Applications
1. Telecommunications: Cellular phone, interphone, blue tooth earphone.
2. Video Devices: MP3/MP4/MP5, digital camera, portable DVD, portable television
3. Portable Devices: GPS,PDA, E-book ,PMP, PSP, portable medical device etc.
4. Illuminate Devices: Miner lamp, search light.
5. Others: Electric Toys, RC models
|
***Please contact us get more detailed information and free samples***
