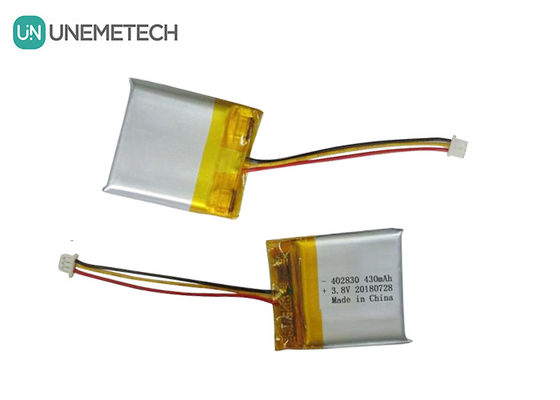

High Voltage Li-polymer battery 402830 3.8V 430mAh Lipo Batteries for Medical Device
Features Overview of High Voltage Battery
The core technology of high voltage polymer lithium ion battery is high voltage electrolyte system. Compared with traditional lithium-ion batteries, high-voltage polymer lithium-ion batteries use a more stable and safer polymer electrolyte material, allowing the battery to operate at higher voltages. This high voltage electrolyte system can not only improve the energy density of the battery, but also reduce the internal resistance and energy loss of the battery, thereby improving the efficiency and cycle life of the battery.
High Voltage Battery 402830 Description
Model : UNM402830
Battery Cell Size 4.0*28.5*30.5mm
Battery Pack Size : 4.0*28.5*32.5mm
Application : Medical Device, Smart Watches, Bluetooth products ...
|
Item |
Specification |
Remark |
|
|
Typical Capacity |
430mAh |
0.5C charge 0.2C discharge |
|
|
Minimum Capacity |
400mAh |
||
|
Nominal Voltage |
3.8V |
|
|
|
End Voltage |
3.0V |
|
|
|
Charging Current (Std.) |
0.2CA=(86mA) |
Ambient temperature |
|
|
Charging Current (Max.) |
215mA |
Ambient temperature |
|
|
Charging Voltage |
4.35V |
|
|
|
Charging Time (Std.) |
6~7.0 hours |
|
|
|
Charging Time (Max.) |
1.0-2.0hours |
|
|
|
Discharging Current (Std.) |
86mA |
Ambient temperature |
|
|
Continuous Discharging Current (Max.) |
215mA |
Ambient temperature |
|
|
Battery Internal Resistance(25℃) |
≤300mΩ |
AC Impedance 1KHz |
|
|
Battery Weight |
About 6.5g |
|
|
|
Temperature range for storage |
less than 1 month |
-5~+45℃ |
Percentage of recoverable capacity 80﹪ |
|
less than 3 month |
0~+35℃ |
||
|
less than 1 year |
23±5℃ |
||
|
Open Circuit Voltage |
TBD |
Measure with voltmeter. |
|
High Voltage Battery Application
High voltage polymer lithium batteries are mainly used in mobile devices, electric vehicles, energy storage systems and medical devices...
RFQ
Where can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,
please call us or tell us in your email so that we'll regard your inquiry priority.
How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
What about the lead time for mass production?
It depends on your order quantity and the season you place the order.
What is your terms of payment?
We accept T/T, L/C, PayPal, Western Union, MoneyGram, Express, etc.
Why lithium battery needs to add PCB can use?
The function of protection plate mainly to charging type battery-cells to protect, keeping battery charging and discharging process of security and stability, and the performance is very important for whole battery circuit system.(Generally, lithium battery consist of cells, protection board and the shell, such as mobile phone)
Why choose us become your vendor?
1. Professional lithium-ion battery manufacturer.
2. Professional in R&D and production of four series of products:
Polymer Lithium-ion cell, Aluminum shell Lithium-ion cell, Cylindrical Lithium-ion cell and power battery
3. Offer OEM service for customer small order.
4. Quickly action & respond.
How to order?
1. Please let us know what kind of model you need.the more information you tell, the better it is.
2. We make invoice for you.
3. Please check and confirm the invoice.
4. Once confirmed the order, please pay it soon.
5. After payment, all goods will be sent to you as soon as possible.
The size of lithium polymer battery can be customized. We have advantage making special Li-Po battery such as extremely thin Li-Po battery , curved battery, high temperature Li-Po battery, low temperature Li-Po battery and special shape Li-Po battery (round)
***Please contact us get more detailed information and free samples***
