Medical Device 7.4V 1800mAh Lithium Ion Polymer Battery Pack / 2S Li-Polymer Battery Pack 406168
Features Overview of 2S Lithium Polymer Battery Pack
Application of 2S Lithium Polymer Battery Pack
Lithium polymer battery is part of lithium-ion rechargeable batteries and is widely used in portable applications. Product size design is flexible, convenient for customer product design tends to light weight, small size, thin thickness characteristics. Applications:
Technical Parameters of 2S Lithium Polymer Battery Pack
Description:406168-2S 7.4V 1800mAh | |||
Battery Type | Lithium Polymer Battery Pack | Material | LiCoO2/NCM |
Model | 406168-2S | Nominal Voltage/Capacity | 7.4V/1800mAh |
Weight | Approx 65.0g | Color&Shape | Silver, Prismatic |
Battrey Cell Dimension | MAX 4.0(T)x61.0(W)x68.0(L)mm | Battery Pack Dimension | MAX 8.5(T)x61.5(W)x71.0(L)mm |
Cycle Life | ≥ 500 times | Warranty | 1 Year |
Charge Info | Charge Voltage : 7.4V | ||
Standard Charge Current : 360mA/0.2C | |||
Max Charge Current: 1800mA/1.0C | |||
Discharge Info | Discharge Cut-off Voltage : 3.0V | ||
Standard Discharge Current : 360mA/0.2C | |||
Max Discharge Current : 1800mA/3.0V | |||
Operating Temperature | Charge: 0℃~+45℃ | ||
Discharge: -20℃~+60℃ |

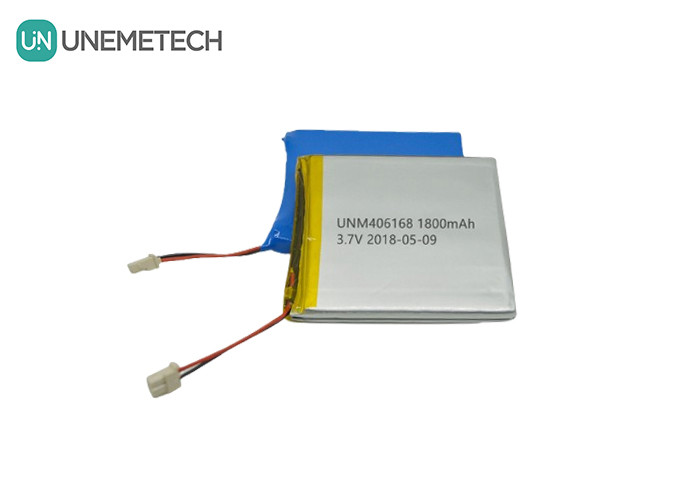

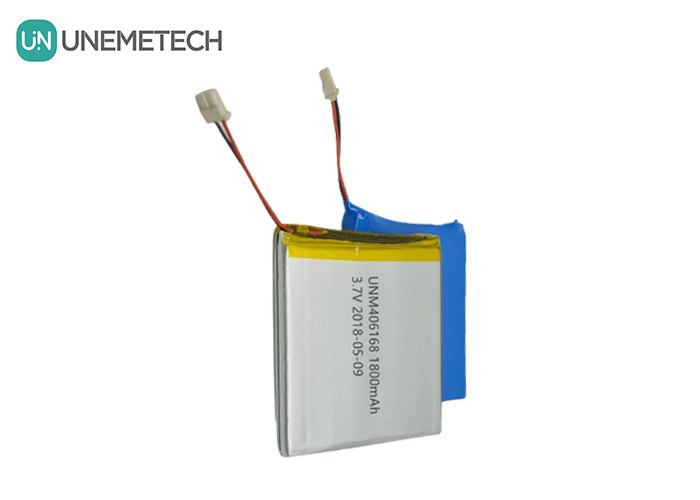

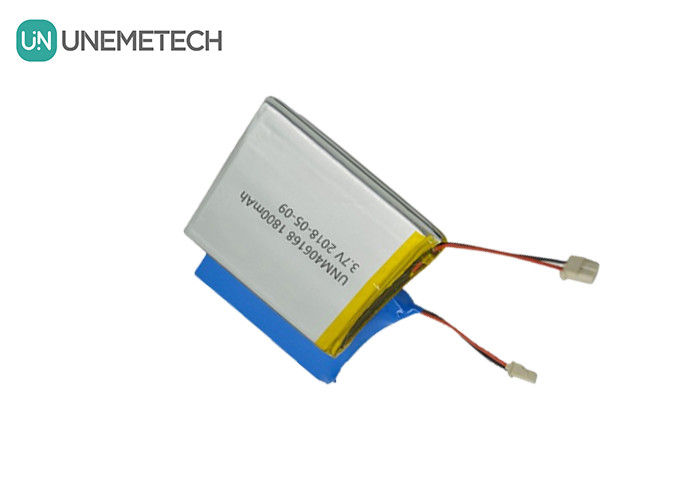

Feature Picture of 2S Lithium Polymer Battery Pack
