2S 7.4V Polymer Lithium Ion Battery Pack 782632 / 720mAh Li-polymer Battery Pack with MSDS
Features Overview of 2S 7.4V Li-polymer Battery Pack
Application of 2S 7.4V Li-polymer Battery Pack
Lithium polymer battery is part of lithium-ion rechargeable batteries and is widely used in portable applications. Product size design is flexible, convenient for customer product design tends to light weight, small size, thin thickness characteristics. Applications:
Technical Parameters of 2S 7.4V Li-polymer Battery Pack
Description:782632-2S 7.4V 720mAh | |||
Battery Type | 7.4V Li-polymer Battery Pack | Material | LiCoO2 |
Model | 782632-2S | Nominal Voltage/Capacity | 7.4V/720mAh |
Weight | Approx 26.5g | Color&Shape | Silver, Prismatic |
Battrey Cell Dimension | MAX 7.8(T)x25.5(W)x32.0(L)mm | Battery Pack Dimension | MAX 16.0(T)x26.0(W)x35.0(L)mm |
Cycle Life | ≥ 500 times | Warranty | 1 Year |
Charge Info | Charge Voltage : 7.4V | ||
Standard Charge Current : 144mA/0.2C | |||
Max Charge Current: 720mA/1.0C | |||
Discharge Info | Discharge Cut-off Voltage : 3.0V | ||
Standard Discharge Current : 144mA/0.2C | |||
Max Discharge Current : 720mA/3.0V | |||
Operating Temperature | Charge: 0℃~+45℃ | ||
Discharge: -20℃~+60℃ |

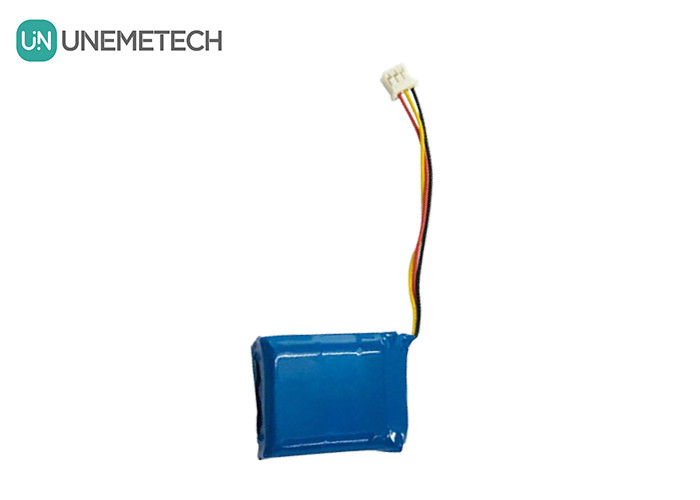

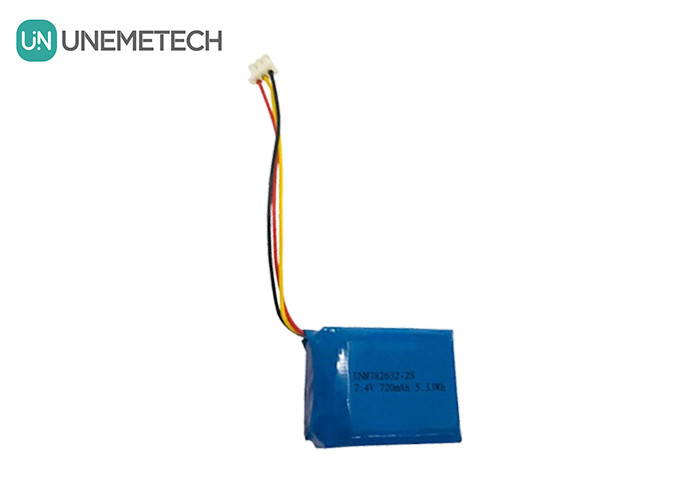

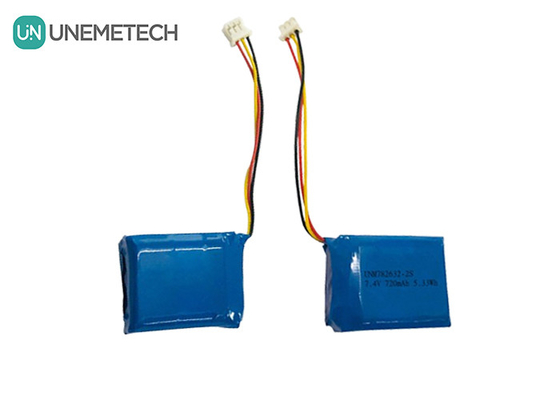

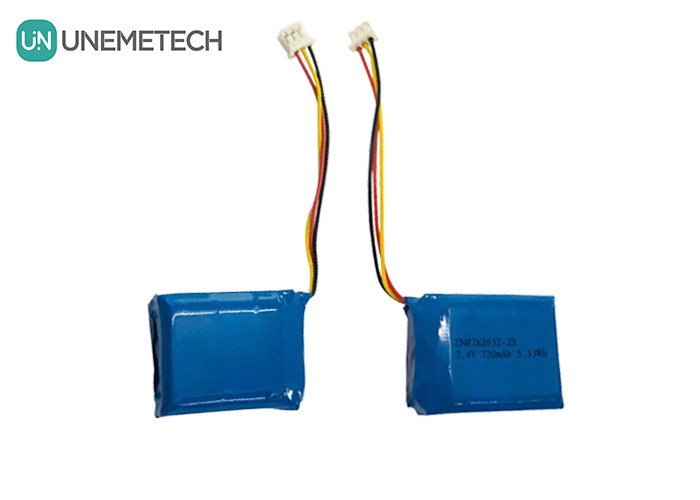

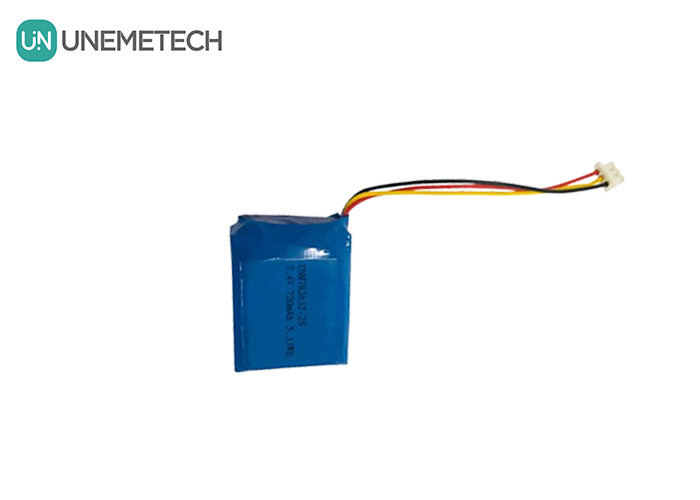

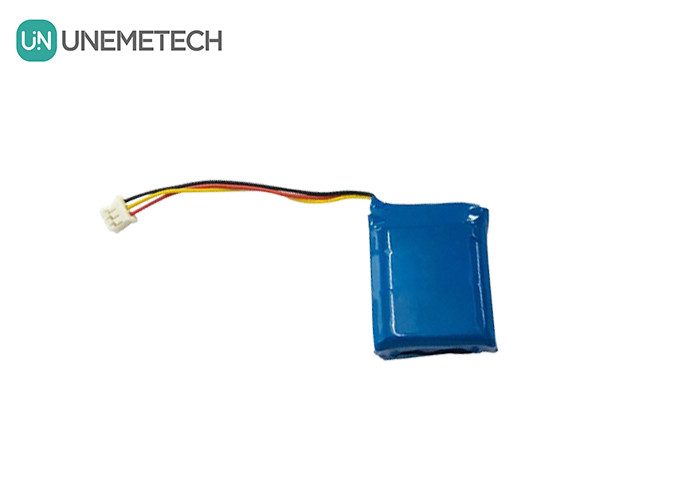

Feature Picture of 2S 7.4V Li-polymer Battery Pack
