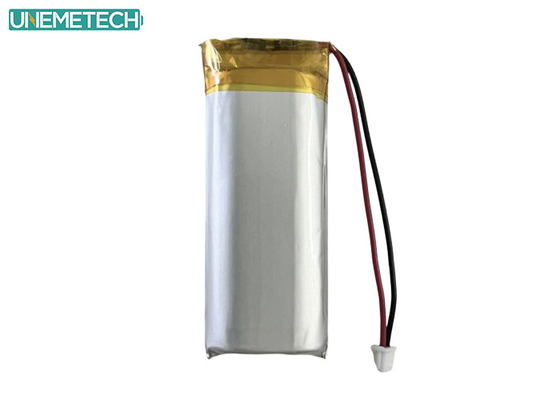

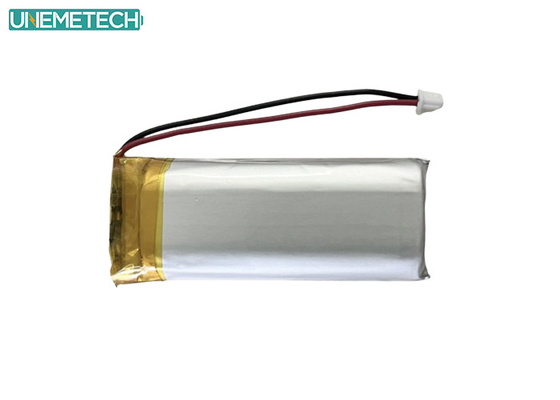

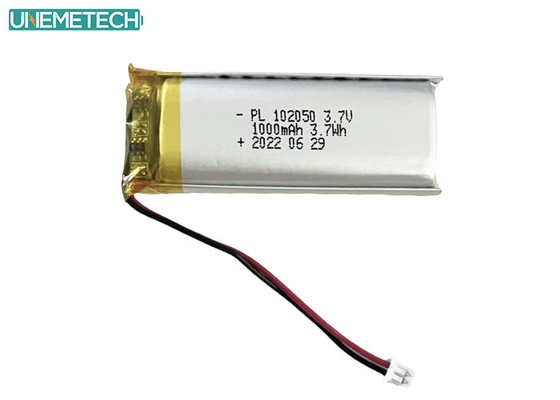

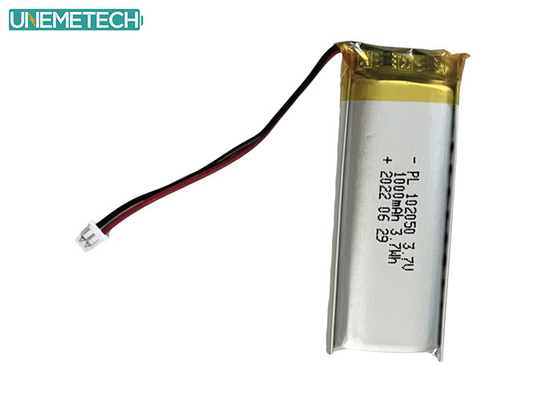

1000mAh Lipo Battery 102050 Lithium Ion Polymer Battery for Beauty Products
1000mAh Lipo Battery 102050 Description
 |
Battery Type: Rechargeable Li-Polymer Battery Configuration: 1S1P Part Number: UNM102050 Typical Capacity: 1000mAh Nominal Voltage: 3.7V Weight: appr. 16.0g Protection Circuit(PCM): Yes Thermistor(NTC): No(Available) Lead wires: UL1571-AWG#26, length: TBD Connector: Molex51021-2P(Replaceable) Pack size Max.: 10x 20 x 52mm (T*W*L)
|
| Item | Description | Dimension | |
| T | Battery pack Thickness max. | Initial | 10mm |
| After 300 Cycles | 10.8mm | ||
| W | Battery Pack Width max. | 20mm | |
| H | Battery Pack Height max. | 52mm | |
| A | Wire Length | TBD | |
| Connector | Molex51021-2P(Replaceable) | TBD | |
| Battery Pack Impedance | ≤ 160mΩ | ||
| Item | Parameter | |
| Design Scheme | DW01+8205(Replaceable) | |
|
Discharging cut-off Voltage |
2.75V | |
| Standard Charging Current | 0.2C | |
| Rapid Charging Current | 0.5C | |
| Standard Discharging Current | 0.2C | |
| Rapid Charging Current | 1.0C | |
|
Cell Weight |
Appr: 16.0g | |
|
Shipment Voltage |
≥3.8V | |
|
Cell Impedance |
≤ 60mΩ | |
|
Operating Temperature |
Charging: 0°C ~ 45°C |
|
|
Discharging: -20°C ~60°C |
||
|
Visual Inspection |
Do not appear such as tear, corrosion, deformation, gas bulge, leakage and other harmful phenomena that damage commercial value. | |
1000mAh Lipo Battery 102050 Certificates and Reports
|
|
1000mAh Lipo Battery 102050 Applications
|
Rechargeable Li-Polymer Batteries are widely used in mobile devices, electric vehicles, energy storage systems and medical devices due to their high energy density, lightness, softness and environmental friendliness. With the development of technology and the decrease of cost, the application of rechargeable li-polymer batteries will be more and more broad in the future.
|
1000mAh Lipo Battery 102050 Packaging and Delivery
