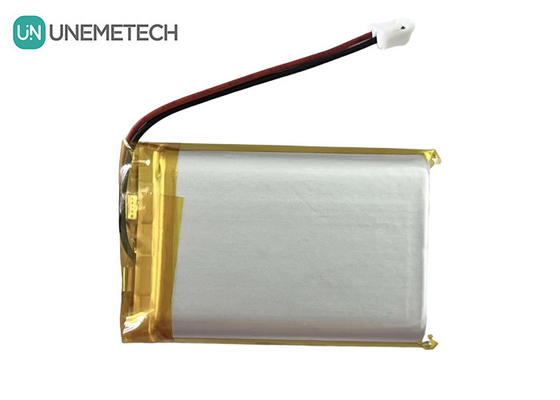

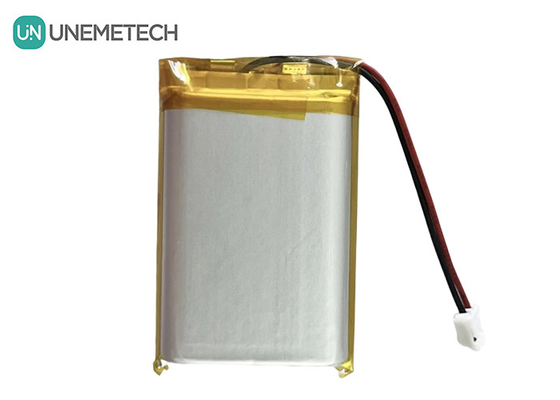

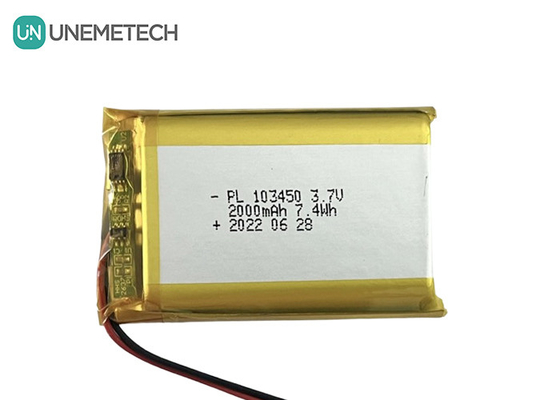

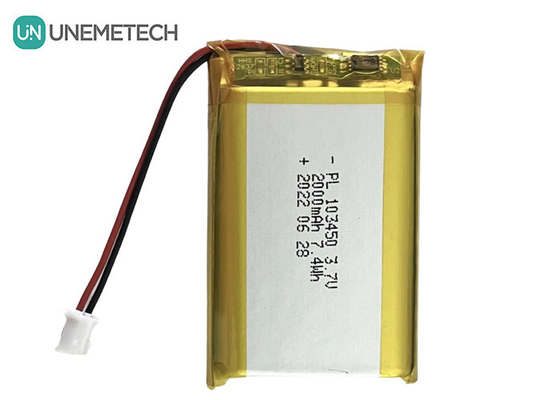

3.7V 2000mAh Rechargeable Lithium Polymer Battery 103450 Large Capacity for Electric Breast Pump
Battery Type: Li ion polymer battery
Configuration: 1S1P
Part Number: 103450
Nominal Capacity: 2000mAh
Nominal Voltage: 3.7V
Weight: appr. 35.0g
Protection Circuit(PCM): Yes
Thermistor(NTC): No(Available)
Lead wires: UL1571-AWG#26, length: TBD
Connector: JST-PHR-2P (Replaceable)
Pack size Max.: 10.2x 34 x 52.5mm (T*W*L)
Certificates and Reports: KC, UN38.3, MSDS
Li ion Polymer Battery Detail
 |
Battery Type: Rechargeable Lithium Polymer Battery Configuration: 1S1P Part Number: 103450 Nominal Capacity: 2000mAh Nominal Voltage: 3.7V Weight: appr. 35.0g Protection Circuit(PCM): Yes Thermistor(NTC): No(Available) Lead wires: UL1571-AWG#26, length: TBD Connector: JST-PHR-2P (Replaceable) Pack size Max.: 10.2x 34 x 52.5mm (T*W*L) Certificates and Reports: KC, UN38.3, MSDS |
| Item | Description | Dimension | |
| T | Battery pack Thickness max. | Initial | 10.2mm |
| After 300 Cycles | 11.0mm | ||
| W | Battery Pack Width max. | 34mm | |
| H | Battery Pack Height max. | 52.5mm | |
| A | Wire Length | TBD | |
| Connector | JST-PHR-2P(Replaceable) | ||
| Battery Pack Impedance | ≤ 150mΩ | ||
| Item | Parameter | |
| Battery Model | 103450 | |
| Design Scheme | DW01+8205A(Replaceable) | |
| Nominal Voltage | 3.7V | |
| Nominal Capacity | 2000mAh(0.2C discharge) | |
| Typical Capacity | 2050mAh(0.2C discharge) | |
| Min Capacity | 2000mAh(0.2C discharge) | |
| Charging Voltage | 4.2V | |
|
Discharging cut-off Voltage |
2.75V | |
| Standard Charging Current | 0.2C | |
| Rapid Charging Current | 0.5C | |
| Standard Discharging Current | 0.2C | |
| Rapid Charging Current | 1.0C | |
|
Cell Weight |
Appr: 35.0g | |
|
Shipment Voltage |
≥3.8V | |
|
Cell Impedance |
≤50mΩ | |
|
Operating Temperature |
Charging: 10°C ~ 45°C |
|
|
Discharging: -20°C ~60°C |
||
|
Visual Inspection |
Do not appear such as tear, corrosion, deformation, gas bulge, leakage and other harmful phenomena that damage commercial value. | |
