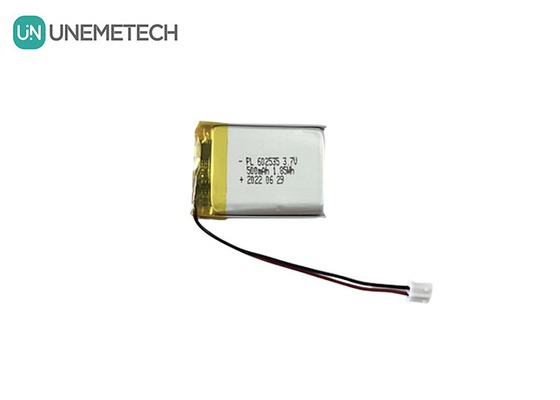

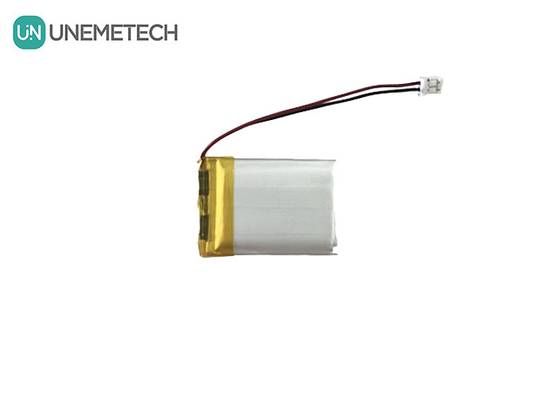

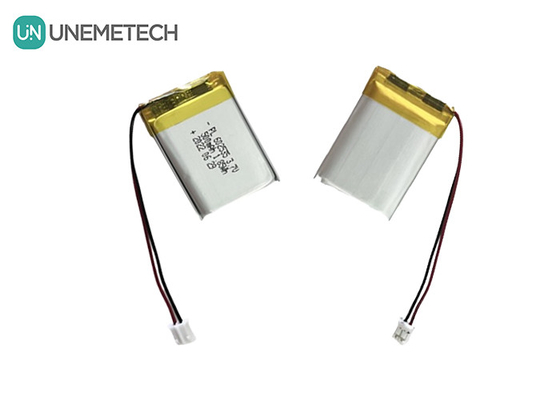

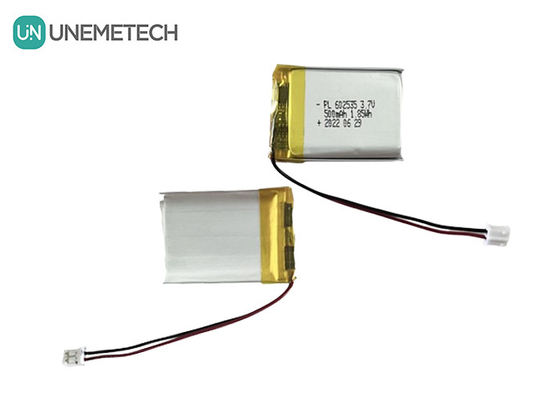

Long Cycle Life 3.7V 500mAh Rechargeable Li Polymer Battery 602535 for Digital Products
Features Overview of Rechargeable Li Polymer Battery
1. Lightweight and flexible: flexible material is used in the case of the flexible battery, the whole battery to bend, fold and change, so to a variety of shapes and ruler, suitable for a variety of applications.
2. High energy density: flexible battery positive and negative plate and diaphragm using high energy density materials, so the same size, flexible battery energy storage than traditional batteries.
3. High Safety: flexible material is used in the case of flexible battery, once the battery is abnormal, to effectively avoid the risk of battery explosion and fire.
4. Long Life: flexible battery positive and negative plate and diaphragm with high-quality materials, to effectively reduce the battery's self-discharge rate and life decay rate, extend battery life.
5. Environmental Protection and energy saving: the production of flexible-pack battery does not need to use a lot of metal materials, so to reduce environmental pollution, but also to reduce production costs and energy consumption. |
Description of Rechargeable Li Polymer Battery
 |
Battery Type: Rechargeable Li Polymer Battery
Configuration: 1S1P
Part Number: 602535
Nominal Capacity: 500mAh
Nominal Voltage: 3.7V
Weight: appr. 10.0g
Protection Circuit(PCM): Yes
Thermistor(NTC): No(Available)
Lead wires: UL1571-AWG#26(Changeable), length: TBD
Connector: JST-PHR-2P(Replaceable)
Pack size Max.: 6.0x25.5x 37.5mm (T*W*L)
|
| Item |
Description |
|
Dimension |
| T |
Battery pack Thickness max. |
Initial |
6.0mm |
| After 500 Cycles |
6.5mm |
| W |
Battery Pack Width max. |
25.5mm |
| H |
Battery Pack Height max. |
37.5mm |
| A |
Wire Length |
TBD |
| Connector |
JST-PHR-2P(Replaceable) |
TBD |
| Battery Pack Impedance |
≤180mΩ |
| Item |
Parameter |
| Charging Voltage |
4.2V |
|
Discharging cut-off Voltage
|
3.0V |
| Standard Charging Current |
0.2C/100mA |
| Rapid Charging Current |
1.0C/500mA |
| Standard Discharging Current |
0.2C/100mA |
| Rapid Charging Current |
1.0C/500mA |
|
Cell Weight
|
Appr: 10.0g |
|
Shipment Voltage
|
≥3.8V (Changeable) |
|
Cell Impedance
|
≤80mΩ |
|
Operating Temperature
|
Charging: 0°C ~ 45°C
|
|
Discharging: -20°C ~60°C
|
|
Visual Inspection
|
Do not appear such as tear, corrosion, deformation, gas bulge, leakage and other harmful phenomena that damage commercial value. |
Certificates and Reports of Rechargeable Li Polymer Battery
Applications of Rechargeable Li Polymer Battery
|
Rechargeable li polymer battery has a wide application prospect. In the future, with the continuous development of technology and the continuous expansion of the market, flexible packet batteries in various fields have been more extensive application and development.
|
Packaging and Delivery of Rechargeable Li Polymer Battery
Precautions for Use
1. Charging: Use a charger designed for polymer lithium batteries. Avoid overcharging.
2. Discharging: Prevent deep discharge by avoiding extremely low voltage levels. Most polymer lithium batteries have built-in protection circuits.
3. Temperature: Operate within the recommended temperature range provided by the manufacturer. Avoid exposing to extreme temperatures.
4. Physical Handling: Handle with care to avoid damage or leakage. Avoid impacts, punctures, or bending.
5. Compatibility: Ensure compatibility with your device in terms of voltage, capacity, and size.
6. Storage: Store in a cool, dry place away from direct sunlight. Avoid storing at full charge or completely discharged.
7. Transportation: Comply with transportation regulations and guidelines.
8. Disposal: Dispose of properly. Recycle at designated facilities or follow local regulations.
After-sales Service
1. After-sales warranty:
- According to the contract, we provide a certain warranty period for the exported lithium polymer batteries.
- During the warranty period, if the product has quality problems under normal use conditions, we will provide replacement or return service according to the after-sales policy.
2. Product quality assurance:
- We guarantee that the exported lithium polymer batteries comply with international quality standards and regulations, and undergo strict quality control and testing to ensure their performance and reliability.
- If you find product quality problems under normal use conditions, please contact us within the contractual warranty period, we will actively deal with it and provide solutions.
3. Problem solving:
- If you encounter any problems or have any complaints during the after-sales service, please contact our customer service team in time.
- We will be happy to provide you with support and actively seek solutions to your problems to ensure your satisfaction and good cooperative relationship.
Our Advantages
◆ Over 10 years of li-polymer battery manufacture & export experience
◆ Professional R&D team supporting
◆ Excellent quality, advanced equipment and competitive prices
◆ Good package, cheap freight cost, faster delivery, best after-sales service
◆ OEM / ODM are welcome, we can customize different size to meet customer's requirements
◆ Long life cycle of charging & discharging
The size of lithium polymer battery can be customized. We have advantage making special Li-Po battery such as extremely thin Li-Po battery , curved battery, high temperature Li-Po battery, low temperature Li-Po battery and special shape Li-Po battery (round)
