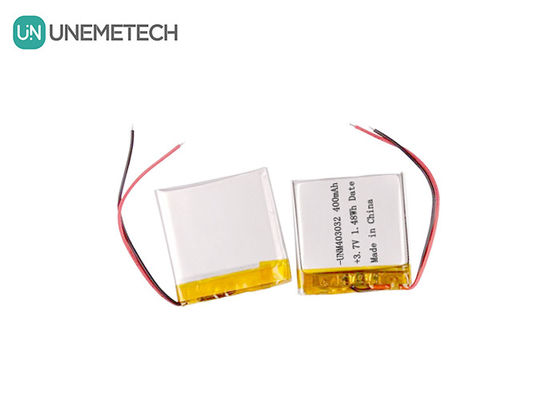

4.2V Custom Lithium ion Polymer Battery 403032 3.7V 400mAh Li ion Polymer Battery for Electronic Products
3.7V 400mAh 403032 Li ion Polymer Battery Specification
|
Items |
Parameter |
|
|
Battery model |
UNM403032 |
|
|
Nominal voltage |
3.7V |
|
|
Minimum capacity |
400mAh(0.2C discharge) |
|
|
Cell Dimension |
4.0*30.5*32.5mm |
|
|
Pack Dimension |
4.0*30.5*34.5mm |
|
|
Charging voltage |
4.2V |
|
|
Discharging cut-off voltage |
3.0V |
|
|
Standard charging |
0.2C / 4.2V |
|
|
Max charging |
1.0C / 4.2V |
|
|
Standard discharging |
0.2C / 3.0V |
|
|
Max continuous discharging |
1.0C / 3.0V |
|
|
Shipment voltage |
≥ 3.85V (Optional) |
|
|
Cell impedance |
≤ 120mΩ |
|
|
Operating temperature |
Charging : 0°C ~ 45°C |
|
|
Discharging : -20°C ~60°C |
||
|
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) |
23±5℃ |
(12 months ≥85% ) |
|
0~+35℃ |
(3 months ≥85% ) |
|
|
-5~+45℃ |
(1 month ≥90% ) |
|
|
20±5℃ is the recommended storage temperature |
||
|
Visual Inspection |
There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
|
Li ion Polymer Battery Applications
Consumer categories: digital cameras; digital camcorders; MP3/MP4 players; pdas; electric toothbrushes; electric shavers; voice recorders, electronic dictionaries, e-book readers; game consoles; wireless mice, etc.
Electric tools: electric saw, electric drill, etc.
Small household appliances: portable vacuum cleaners, electric mops and so on
Electric Toys: Remote Control Toys, model aircraft, model ships and so on
Electric vehicles: electric bicycles, electric cars
Lighting category: emergency lamp, lawn lamp, Miner's lamp, solar lamp, LED lamp, etc.
Beauty and health care category: electric beauty, hairdresser, etc.
Medical Devices: portable electronic medical equipment, hearing aids, electric wheelchair, etc.
Other classes: instrumentation, GPS, high-temperature power supply system, cold equipment
Li ion Polymer Battery Advantages
1. High energy density
2. Excellent security: no fire, no explore of short-circuit, over-charge, over-discharge, over-current, shock, vibration, crush, acupuncture.
3. Long cycle life: capacity recovery can be above 85% after 500 cycles
4. Environment-friendly
5. Flexible size design subject to different space of application
6. Hundreds of moulds for micro size with 8mAh-10000mAh
Precautions for Use
1. Charging: Use a charger designed for polymer lithium batteries. Avoid overcharging.
2. Discharging: Prevent deep discharge by avoiding extremely low voltage levels. Most polymer lithium batteries have built-in protection circuits.
3. Temperature: Operate within the recommended temperature range provided by the manufacturer. Avoid exposing to extreme temperatures.
4. Physical Handling: Handle with care to avoid damage or leakage. Avoid impacts, punctures, or bending.
5. Compatibility: Ensure compatibility with your device in terms of voltage, capacity, and size.
6. Storage: Store in a cool, dry place away from direct sunlight. Avoid storing at full charge or completely discharged.
7. Transportation: Comply with transportation regulations and guidelines.
8. Disposal: Dispose of properly. Recycle at designated facilities or follow local regulations.
After-sales Service
1. After-sales warranty:
- According to the contract, we provide a certain warranty period for the exported lithium polymer batteries.
- During the warranty period, if the product has quality problems under normal use conditions, we will provide replacement or return service according to the after-sales policy.
2. Product quality assurance:
- We guarantee that the exported lithium polymer batteries comply with international quality standards and regulations, and undergo strict quality control and testing to ensure their performance and reliability.
- If you find product quality problems under normal use conditions, please contact us within the contractual warranty period, we will actively deal with it and provide solutions.
3. Problem solving:
- If you encounter any problems or have any complaints during the after-sales service, please contact our customer service team in time.
- We will be happy to provide you with support and actively seek solutions to your problems to ensure your satisfaction and good cooperative relationship.
Our Advantages
◆ Over 10 years of li-polymer battery manufacture & export experience
◆ Professional R&D team supporting
◆ Excellent quality, advanced equipment and competitive prices
◆ Good package, cheap freight cost, faster delivery, best after-sales service
◆ OEM / ODM are welcome, we can customize different size to meet customer's requirements
◆ Long life cycle of charging & discharging
The size of rechargeable lipo battery can be customized. We have advantage making special Li-Po battery such as extremely thin Li-Po battery , curved battery, high temperature Li-Po battery, low temperature Li-Po battery and special shape Li-Po battery (round)
***Please contact us to get more detailed information and free samples***
