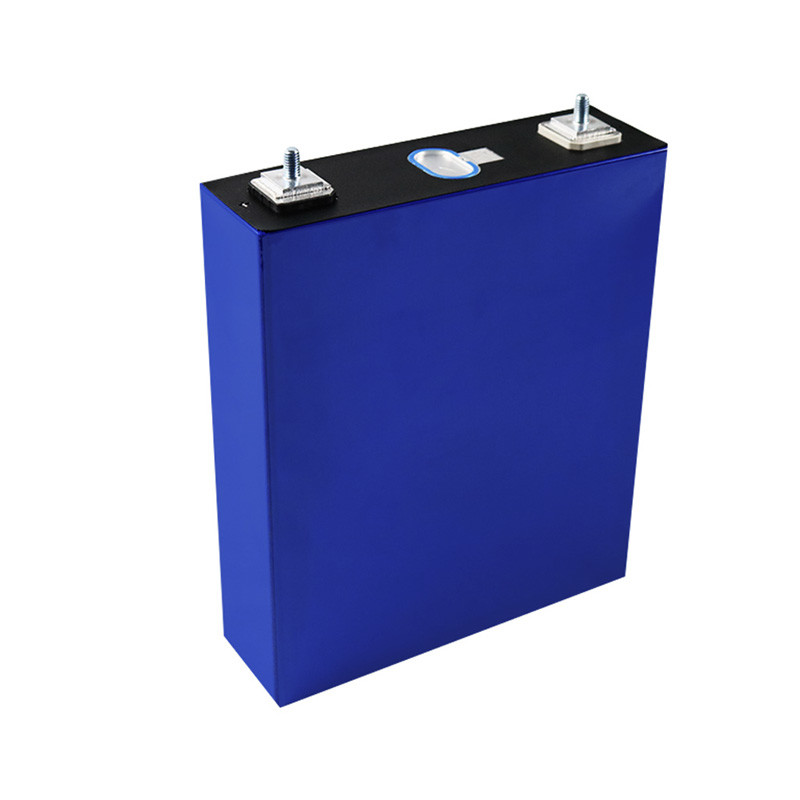

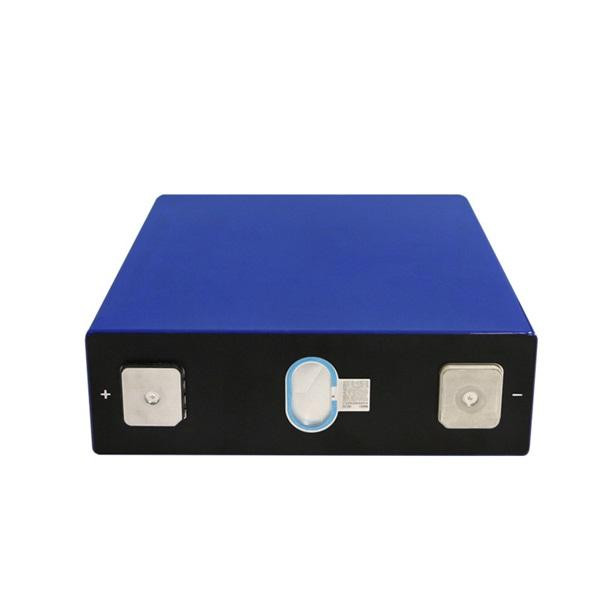

EVE LF230 3.2V 230Ah LiFePO4 Battery Cell Prismatic Lithium Iron Phosphate Battery
| Battery Type: | Lithium Iron Phosphate Battery | Nominal Capacity: | 230Ah |
| Nominal Voltage: | 3.2V | End-off-charge Voltage: | 3.65V |
| Standard Charging Current: | 115A | Weight: | 4140 G ± 124 G |
| Initial IR: | 0.20 MΩ ± 0.05 MΩ | Nominal Energy: | 736.0 Wh |
| High Light: | 3.2V 230Ah LiFePO4 Battery Cell,Prismatic LFP Cell,EVE LF230 LiFePO4 Battery Cell |
||
EVE LF230 3.2V 230Ah LiFePO4 Battery Cell Prismatic Lithium Iron Phosphate Battery
EVE LF230 230Ah LiFePo4 Battery Description
|
The EVE LF230 3.2V 230Ah LiFePO4 battery cell is a powerful lithium iron phosphate battery designed for high-capacity energy storage. Its prismatic design allows for efficient use of space and improved thermal management. Ideal for renewable energy applications, electric vehicles, and backup power systems, it offers long cycle life, excellent safety, and reliable performance in demanding conditions. |
EVE LF230 230Ah LiFePo4 Battery Paramaters
| Item | Specification |
| Nominal Capacity | 230.0 Ah |
| Nominal Energy | 736.0 Wh |
| Nominal Voltage | 3.2 V |
| Weight | 4140 g ± 124 g |
| End-off-chargeVoltage | 3.65 V |
| End-off-dicharge Voltage | 2.5 V (T > 0℃) 2.0 V (T ≤ 0℃) |
| Standard Charging Current | 115 A |
| Maximum Instantaneous Charging Current | 2C |
| Standard Discharging Current | 115 A |
| Maximum Instantaneous Discharging Current | 3C |
| Initial IR | 0.20 mΩ ± 0.05 mΩ |
| Direct Current Resistance (DCR) | ≤ 1.2 mΩ |
| Dimension (With Insulation Film ) | Terminal Height: 207.20 mm ± 0.50 mm |
| Can-top Height : 204.60 mm ± 0.50 mm | |
| Length: 173.93 mm ± 0.50 mm | |
| Thickness: 53.85 mm ± 0.50 mm | |
| Center Distance between Poles: 123 ± 0.30 mm | |
| Operation Temperature | Charge Temperature: -10℃~65℃ |
| Discharge Temperature: -20℃~45℃ | |
| Storage Temperature | 3 months 0℃ ~ 35℃ |
| 1 month -20℃ ~ 45℃ | |
| Cycle Life | 4000 cycles, 80% SOH, 25℃ |
| 2000 cycles, 80% SOH, 45℃ | |
 |
|
EVE LF230 230Ah LiFePo4 Battery Applications
| Renewable Energy Storage, Electric Vehicles (EVs), Backup Power Systems (UPS), Industrial Equipment (Forklifts, Pallet Jacks), Telecommunications (Telecom Towers, Data Centers), Marine Applications (Boats, Yachts), Electric Grid Support, Battery Energy Storage Systems (BESS), Off-Grid Solar Systems, Home Energy Storage Solutions. |
