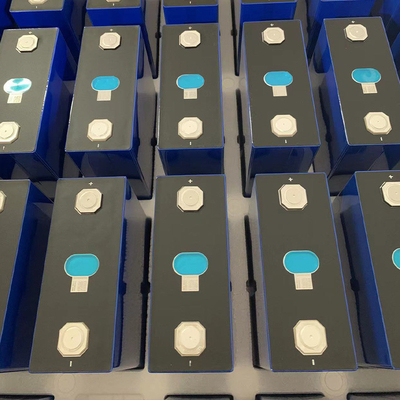

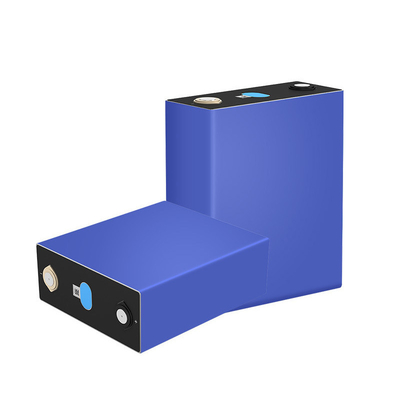

EVE LF280K 3.2V 280Ah LiFePO4 Battery Cell New Grade A Prismatic LFP Cell
| Battery Type: | Lithium Iron Phosphate Battery | Nominal Capacity: | 280Ah |
| Nominal Voltage: | 3.2V | End-off-charge Voltage: | 3.65V |
| Standard Charging Power: | 448W | Weight: | 5490 G ± 300 G |
| Initial IR: | ≤0.25mΩ | Nominal Energy: | 896Wh |
| High Light: | EVE LF280K LiFePO4 Battery Cell,3.2V 280Ah Prismatic LFP Cell,3.2V 280Ah LiFePO4 Battery Cell |
||
EVE LF280K 3.2V 280Ah LiFePO4 Battery Cell New Grade A Prismatic LFP Cell
EVE LF280K 280Ah LiFePo4 Battery Description
|
The EVE LF280K 280Ah LiFePO4 battery is a high-capacity, 3.2V lithium iron phosphate battery designed for long cycle life and safety. With a robust construction, it offers excellent thermal stability and efficient charging. Ideal for applications in renewable energy systems, electric vehicles, and backup power solutions, it ensures reliable performance and durability. |
EVE LF280K 280Ah LiFePo4 Battery Paramaters
| Item | Specification |
| Nominal Capacity | 280.0 Ah |
| Nominal Energy | 896 Wh |
| Nominal Voltage | 3.2 V |
| Weight | 5490 g ± 300 g |
| End-off-chargeVoltage | 3.65 V |
| End-off-dicharge Voltage | 2.5 V (T > 0℃) 2.0 V (T ≤ 0℃) |
| Standard Charging Power | 448 W |
| Max Continuous Charging Power | 896 W |
| Standard Discharging Power | 448 W |
| Max Continuous Discharging Power | 896 W |
| Initial IR | ≤0.25 mΩ |
| Direct Current Resistance (DCR) | ≤ 1.5 mΩ |

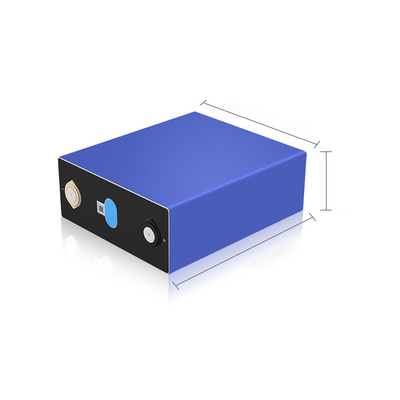

| Dimension (With Insulation Film ) | Terminal Height: 207.20 mm ± 0.50 mm |
| Can-top Height : 204.60 mm ± 0.50 mm | |
| Length: 173.70 mm ± 0.50 mm | |
| Thickness: 71.70 mm ± 0.80 mm | |
| Operation Temperature | Charge Temperature: 0℃~60℃ |
| Discharge Temperature: -30℃~60℃ | |
| Storage Temperature | 1 year 0℃ ~ 35℃ |
| 1 month -20℃ ~ 45℃ | |
| Cycle Life | 8000 cycles, 70% SOH, 25℃ |
| 3000 cycles, 70% SOH, 45℃ | |
|
|
EVE LF280K 280Ah LiFePo4 Battery Applications
| Renewable Energy Storage, Electric Vehicles (EVs), Backup Power Systems (UPS), Industrial Equipment (Forklifts, Pallet Jacks), Telecommunications (Telecom Towers, Data Centers), Marine Applications (Boats, Yachts), Electric Grid Support, Battery Energy Storage Systems (BESS), Off-Grid Solar Systems, Home Energy Storage Solutions. |
