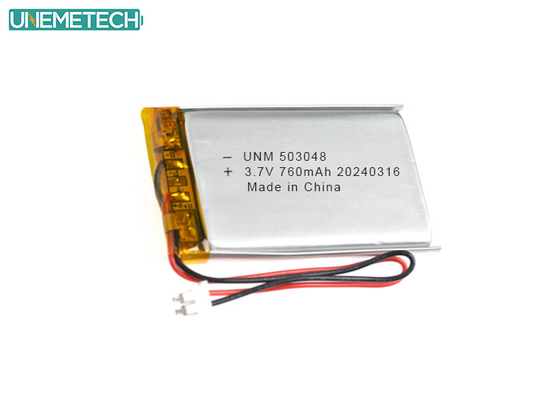

3.7 V 760mAh Lithium Polymer Battery 503048 with CE Approved for Smart Electronics
| Battery Type: | 3.7 V Lipo Battery | Model Number: | UNM503048 |
| Nominal Voltage: | 3.7 V | Nominal Capacity: | 760mAh |
| Charge / Discharge Current: | 0.2C/152mA(Standard), 1C/760mA(Max) | Energy: | 2.812Wh |
| Cell Dimensions: | MAX 5.0(T)x30.0(W)x48.0(L)mm | Pack Dimensions: | MAX 5.0(T)x30.0(W)x50.0(L)mm |
| Working Temperature: | Charge: 0-45℃; Discharge: -20-60℃ | Warranty: | 1 Year |
| High Light: | 3.7 V Lithium Polymer Battery,760mAh Lithium Polymer Battery |
||
3.7 V 760mAh Lithium Polymer Battery 503048 with CE Approved for Smart Electronics
Lithium Polymer Battery Description
Rechargeable lithium polymer battery has many advantages, such as variable size, lightweight, high safety, high energy density, and so on.
Size, voltage, capacity, rated power, temperature...can be customized. Contact us now!
Lithium Polymer Battery Features
Lithium polymer battery has long cycle life of charge & discharge;
Easily customized, energy density, high capacity;
Enhanced safety parameters with PCB IC & MOS & NTC...protectors;
Support OEM & ODM service for special size;
Assemble with mounted connectors, JST, Molex, HRS, and so on.
Lithium Polymer Battery 503048 Parameters
| Description: 503048 3.7V 760mAh Lithium Polymer Battery | |||
| Battery Type | 3.7 V lipo battery | Material | LiCoO2/NCM |
| Model Number | 503048 | Nominal Voltage/Capacity | 3.7V/760mAh |
| Cell Weight | Approx 13g | Color&Shape | Silver, Prismatic |
| Battrey Cell Dimension |
MAX 5.0(T)x30.0(W)x48.0(L)mm |
Battery Pack Dimension | MAX 5.0(T)x30.0(W)x52.0(L)mm |
| Cycle Life | ≥ 500 times | Warranty | 1 Year |
| Charge Info | Charge Voltage : 4.2V | ||
| Standard Charge Current : 152mA/0.2C | |||
| Rapid Charge Current: 760mA/1.0C (Customized) | |||
| Discharge Info | Discharge Cut-off Voltage : 3.0V | ||
| Standard Discharge Current : 152mA/0.2C | |||
| Rapid Discharge Current : 760mA/1.0C (Customized) | |||
| Operating Temperature | Charge: 0℃~+45℃ | ||
| Discharge: -20℃~+60℃ | |||
| PCB & Wires & Connector & PVC & 3M Tape | Optional | ||
| Warning |
Do not overcharge, force charge, short circuit, disassemble, deform, heat, or place the battery near a direct flame. Any of the above actions could cause it to ignite, explode or become damaged. When storing the battery or throwing it away, be sure to cover it with tape. |
||
Lithium Polymer Battery 503048 Applications
Smart wearable devices, smart cards, smart electronics, GPS tracker, bluetooth earphone, medical devices, electric children toys, electric shoes, electric blanket, Intelligent door lock, intelligent lighting, emergency light, industrial cameras, etc.
Our Advantages
♦ Over 10 years of lithium polymer battery manufacture & export experience
♦ Professional R&D team supporting
♦ Excellent quality, advanced equipment and competitive prices
♦ OEM / ODM are welcome, we can customize different size to meet customer's requirements
♦ 100% inspection before shipment.
♦ Mass production with international certifications.
♦ Good package, cheap freight cost, faster delivery, best after-sales service
♦ Support free samples to test.
***Please contact us to get more detailed information and free samples***
