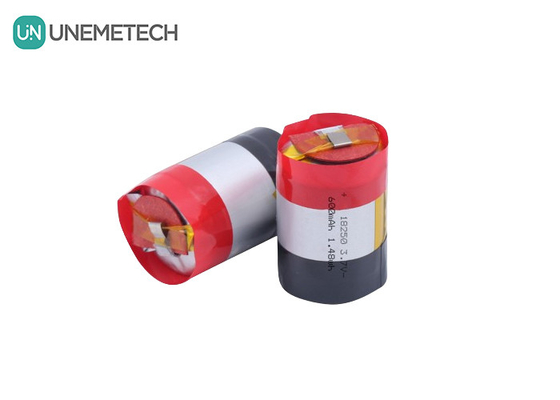

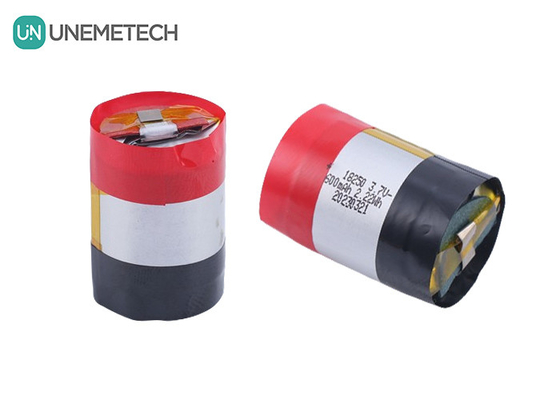

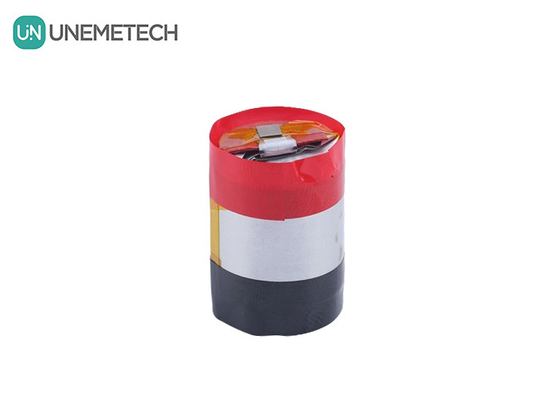

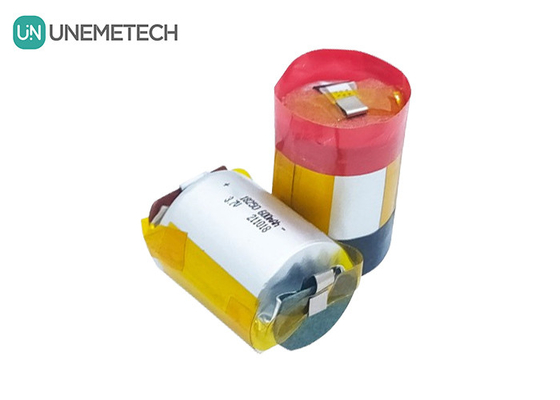

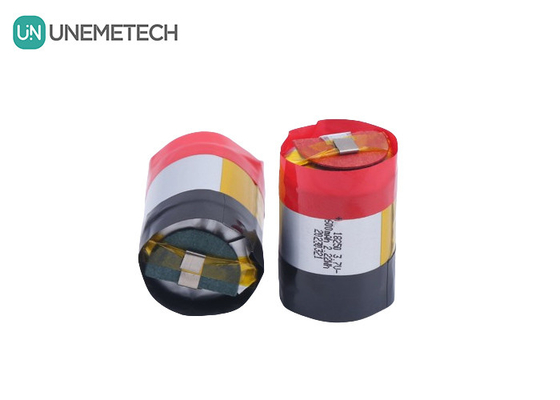

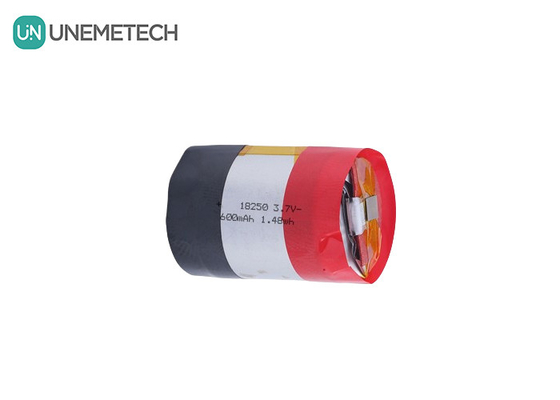

18250 630mAh 3.7V Rechargeable Li Ion Polymer Battery with 5A Pluse discharge Current
Features Overview of Li ion Polymer Battery
High energy, miniaturization, and lightweight: Polymer lithium batteries have high energy density and can achieve smaller size and lighter weight at the same capacity.
Ultra-thin features: Batteries of different shapes and capacities can be made to meet product needs. The theoretical minimum thickness can reach 0.5mm.
Good safety: using solid electrolyte, there are no flammability and leakage problems that may occur with liquid electrolyte, making it safer than lithium-ion batteries.
Small self-discharge: The self-discharge is small during storage and standby states, which is beneficial to extending battery life.
Long cycle life: The cycle life of polymer lithium batteries is generally higher than that of lithium-ion batteries, which can reach more than 500 times.
Flexible design and customizable appearance: The battery appearance can be customized according to the size of the battery compartment of the customer's product.
3.7V 630mAh 18250 Battery Description
| Battery Model | 18250 |
| Nominal voltage | 3.7V |
| Typical capacity | 630mAh |
| Minimum capacity | 600mAh |
| Energy | 2.33Wh |
| Limited Charging voltage | 4.2V |
| Upper Limited Charge Voltage | 4.25V |
| Discharge Cut-off Voltage | 3.0V |
| Standard charging | 315mA |
| Max charging | 630mA |
| Standard discharging | 1.0C/3.0V |
| Max continuous discharge | 3A/3.0V |
| Max Pluse discharge | 5A/3.0V |
| Weight | Appr 11.5g |
| Shipment voltage | 3.92～4.00V |
| Battery pack impedance | ≤70mΩ |
| Allowable Temperature Range | 5℃～45℃ Charge Temperature Range |
| -10℃～60℃ Discharge Temperature Range | |
 |
|
|
Item
|
Specifications
|
| D1 |
18.5mm max
|
| D2 |
17.1 mm min
|
| L |
26.0mm max (with tab)
|
| W1 |
4.0± 1.0 mm
|
| L1 |
4.0±1.0mm
|
| The diameter of cell should be based on 18.5mm inner diameter standard | |
Li ion Polymer Battery Application
Earphones, electronic atomizer, bluetooth speaker, home appliances, etc.
|
