3.7V Standard 18650 Cylindrical Lithium-ion Cell 3200mAh Large Capacity 18650 Lithium Batteries

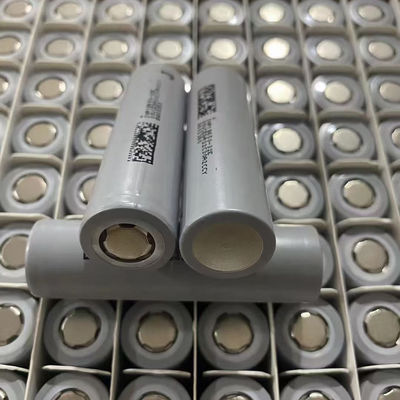

Cylindrical Lithium-ion Cell INR18650-32E 3200mAh Description
| Model | INR18650-32E |
| Nominal Capacity(Typical) | 3200mAh@0.2C |
| Nominal Capacity(Minimum) | 3100mAh@0.2C |
| Nominal Voltage | 3.7V |
| Charging Voltage | 4.2V |
| Charging Method | CC-CV(0.5C, 4.2V, 50mA cut-off) |
| Standard(continues) Charge Current |
0.5C |
|
Maximum Continues
Current
|
1C(not for cycle life) |
| Standard Discharge Current | 1C |
| Max Discharge Current |
10A(for cycle life) 5C(not for cycle life) |
| Discharge Cut-off Voltage | 2.5V |
| Internal Resistance | ＜28mΩ(ACIR) |
| Cycle Life |
+0.5C/-1C 4.2V(0.05C)-2.75V Cap(1000th)/Cap(Av10)≥80% |
|
+0.5C/-10A 4.2V(0.05C)-2.75V Cap(300th)/Cap(Av10)≥80% |
|
|
Operating Environment (surface temperature) |
Charge, 0°C ~ 50°C |
| Discharge, -20°C~60°C | |
| Weight | ＜48g |
| Cell Dimension | Hight: 64.95mm±0.20mm; Diameter: 18.25mm±0.20mm |
| Storage Environment | 1 year: -20~25°C ≤70%RH |
| 3 months: -20~45°C ≤70%RH | |
| 1 month: -20~60° ≤70%RH | |
|
|
|
Cylindrical Lithium-ion Cell Applications
Lithium-ion batteries have the advantages of light weight, large capacity, and no memory effect, so they are widely used. Many digital devices use lithium-ion batteries as power sources, although they are relatively expensive. The energy density of lithium-ion batteries is very high, its capacity is 1.5 to 2 times that of nickel-metal hydride batteries of the same weight, and it has a very low self-discharge rate.
 |
Cylindrical Lithium-ion Cell Advantages
1) Cells: A grade cells to make sure batteries in high and full capacity,
2). High-energy density,
3). Light weight,
4). Low self-discharge,
5). Low internal resistance,
6). Long cycle life, over 1000 times,
5) Certifications : UL, CE, CB, KC, BIS, PSE, UN38.3, MSDS,...
Our Service
1). Professional lithium ion battery packs supplier for over ten years, and have our own factory,
2). Strong R&D team to support,
3). Offer OEM/ODM service for customer's order,
4). Quick reply and action,
5). Competitive price, good sale and after-sales service.
