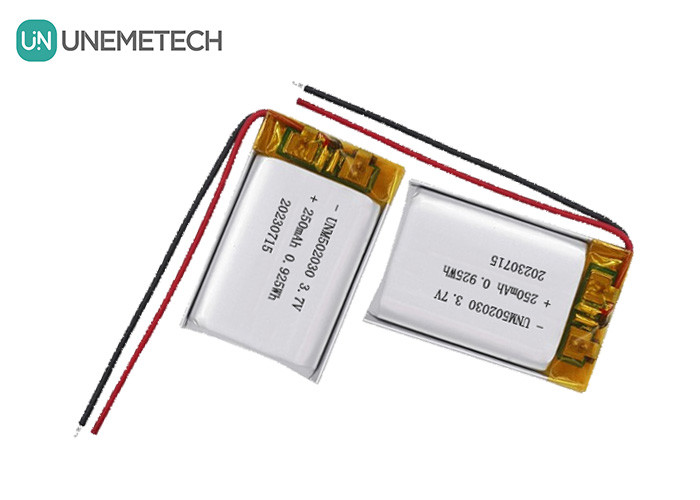

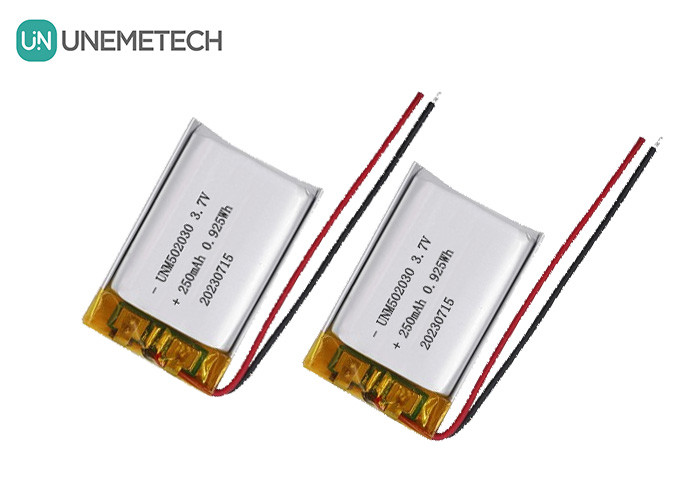

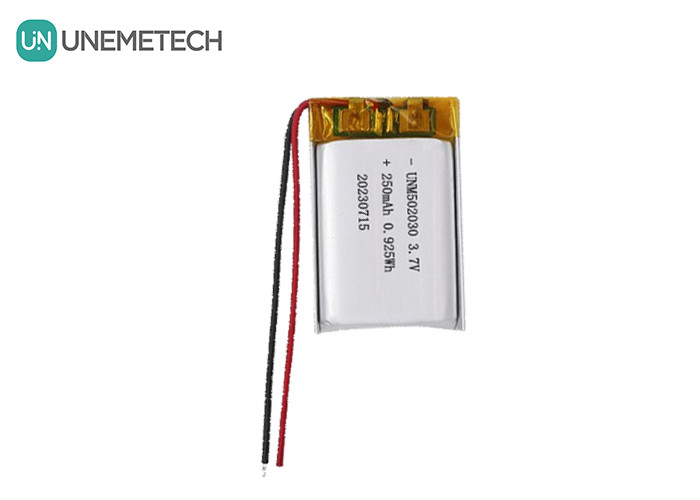

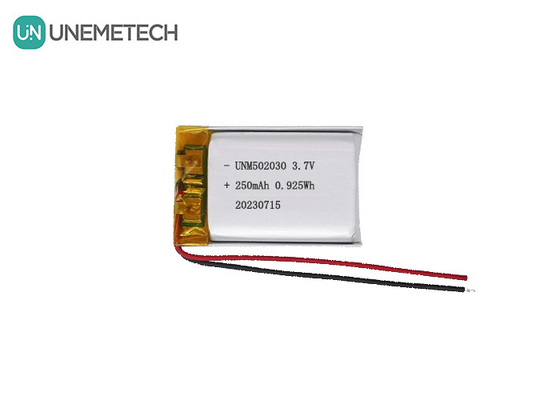

3.7V 250mAh Rechargeable Lithium Polymer Battery 502030 for Beauty Devices
Rechargeable Lithium Polymer Battery Features
1. The self-discharge is small, and the capacity loss is small after a long time.
2. Long life, the normal use of its cycle life can reach more than 500 times.
3. No memory effect, no need to empty the remaining power before charging, easy to use.
4. Good security
Polymer lithium battery in the structure of aluminum-plastic flexible packaging, different from the metal shell of the liquid battery, once a safety hazard, liquid battery is prone to explosion, but the polymer battery will only gas drum.
5. Light weight
The weight of the polymer battery is 40% lighter than that of the lithium battery of the same capacity, and 20% lighter than that of the aluminum battery.
Rechargeable Lithium Polymer Battery 502030 Description
![]() |
Battery Type: Rechargeable Lithium Polymer Battery Configuration: 1S1P Part Number: UNM502030 Nominal Capacity: 250mAh Nominal Voltage: 3.7V Weight: appr. 5.0g Protection Circuit(PCM): Yes Thermistor(NTC): No(Available) Lead wires: UL1571-AWG#26, length: TBD Connector: Molex51021-2P(Replaceable) Pack size Max.: 5.0x20x 32.0mm (T*W*L) |
Item | Description | Dimension | |
T | Battery pack Thickness max. | Initial | 5.0mm |
After 300 Cycles | 5.4mm | ||
W | Battery Pack Width max. | 20mm | |
H | Battery Pack Height max. | 32.0mm | |
A | Wire Length | TBD | |
Connector | Molex51021-2P(Replaceable) |
Item | Parameter | |
Design Scheme | DW01+8205A(Replaceable) | |
Charging Voltage | 4.2V | |
Discharging cut-off Voltage |
3.0V | |
Standard Charging Current | 0.2C | |
Rapid Charging Current | 1.0C | |
Standard Discharging Current | 0.2C | |
Rapid Charging Current | 1.0C | |
Shipment Voltage |
≥3.8V | |
Operating Temperature |
Charging: 0°C ~ 45°C |
|
Discharging: -20°C ~60°C |
||
Visual Inspection |
Do not appear such as tear, corrosion, deformation, gas bulge, leakage and other harmful phenomena that damage commercial value. |
Rechargeable Lithium Polymer Battery Certificates and Reports
![]() |
![]() |
Rechargeable Lithium Polymer Battery Applications
Rechargeable Lithium Polymer Batteries are widely used in wearable devices, electric toys and smart devices...
Rechargeable Lithium Polymer Battery Packaging and Delivery
![]() |
Precautions for Use
1. Charging: Use a charger designed for polymer lithium batteries. Avoid overcharging.
2. Discharging: Prevent deep discharge by avoiding extremely low voltage levels. Most polymer lithium batteries have built-in protection circuits.
3. Temperature: Operate within the recommended temperature range provided by the manufacturer. Avoid exposing to extreme temperatures.
4. Physical Handling: Handle with care to avoid damage or leakage. Avoid impacts, punctures, or bending.
5. Compatibility: Ensure compatibility with your device in terms of voltage, capacity, and size.
6. Storage: Store in a cool, dry place away from direct sunlight. Avoid storing at full charge or completely discharged.
7. Transportation: Comply with transportation regulations and guidelines.
8. Disposal: Dispose of properly. Recycle at designated facilities or follow local regulations.
After-sales Service
1. After-sales warranty:
- According to the contract, we provide a certain warranty period for the exported lithium polymer batteries.
- During the warranty period, if the product has quality problems under normal use conditions, we will provide replacement or return service according to the after-sales policy.
2. Product quality assurance:
- We guarantee that the exported lithium polymer batteries comply with international quality standards and regulations, and undergo strict quality control and testing to ensure their performance and reliability.
- If you find product quality problems under normal use conditions, please contact us within the contractual warranty period, we will actively deal with it and provide solutions.
3. Problem solving:
- If you encounter any problems or have any complaints during the after-sales service, please contact our customer service team in time.
- We will be happy to provide you with support and actively seek solutions to your problems to ensure your satisfaction and good cooperative relationship.
Our Advantages
◆ Over 10 years of li-polymer battery manufacture & export experience
◆ Professional R&D team supporting
◆ Excellent quality, advanced equipment and competitive prices
◆ Good package, cheap freight cost, faster delivery, best after-sales service
◆ OEM / ODM are welcome, we can customize different size to meet customer's requirements
◆ Long life cycle of charging & discharging
The size of lithium polymer battery can be customized. We have advantage making special Li-Po battery such as extremely thin Li-Po battery , curved battery, high temperature Li-Po battery, low temperature Li-Po battery and special shape Li-Po battery (round)
***Please contact us to get more detailed information and free samples***
