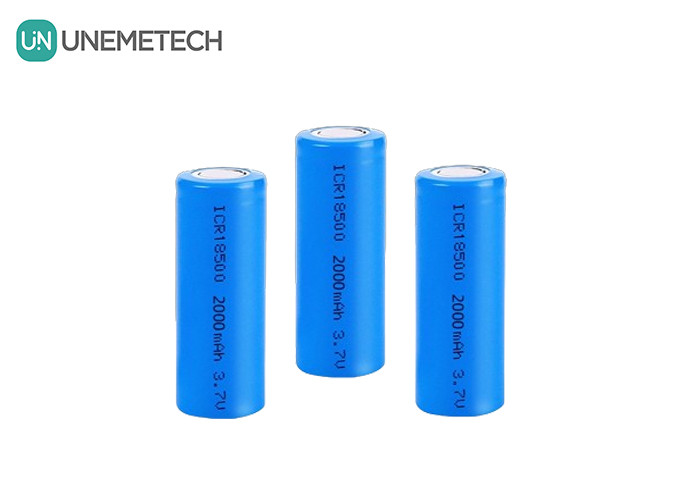

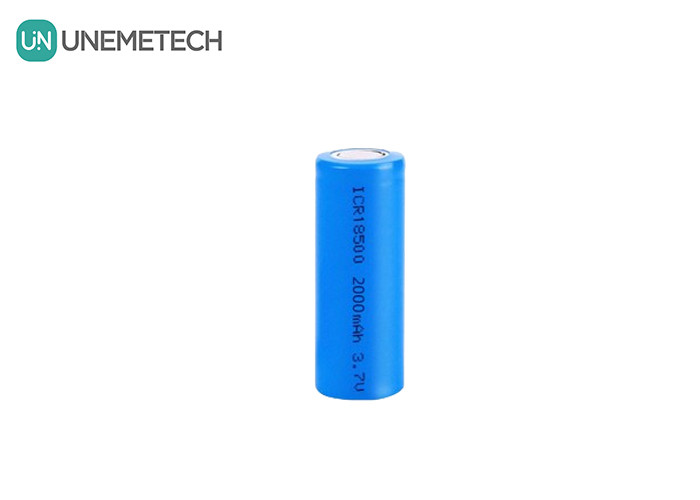

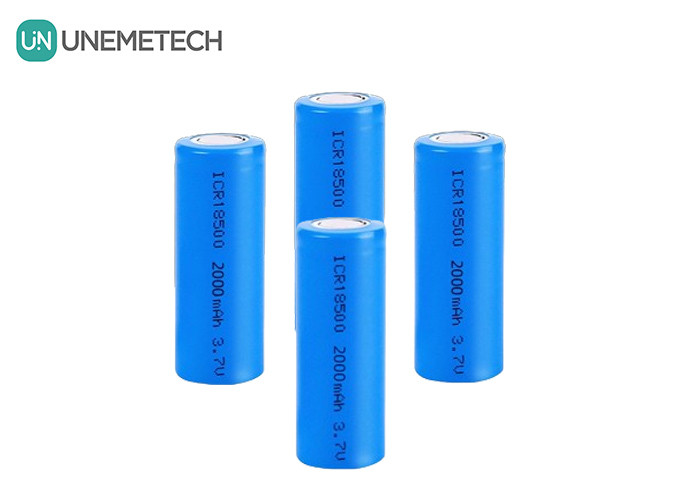

18500 Cylindrical Battery 3.7V 2000mAh Rechargeable Lithium Ion Battery for Flashlight
Ternary lithium battery, as a variant of lithium battery, is characterized by its positive electrode constructed of ternary material, which is a combination of three elements: nickel, cobalt and manganese. In some cases, anodes may also be made from nickel, cobalt, and aluminum.
This type of battery is popular for its excellent performance, especially in the field of pure electric vehicles. Ternary lithium batteries are not only lightweight, but more importantly, they have high energy density, which means that they can store more electrical energy under the same weight. This feature is crucial to improving the cruising range of electric vehicles. During the charging and discharging process, lithium ions inside the ternary lithium battery will migrate in an orderly manner between the positive and negative electrodes, forming an electric current.
Description and Model
Description: Cell(Cylindrical Lithium-ion Cell)
Model: 18500
Site: Guangdong, China
2000mAh 18500 Cylindrical Battery Specification
| Model | 18500 |
|
Nominal Capacity(Typical) |
2000mAh@0.2C |
|
Nominal Capacity(Minimum) |
1970mAh@0.2C |
| Nominal Voltage | 3.7V |
| End-of- charge Voltage | 4.2V |
| End-of- discharge Voltage | 3.0V |
| Quick Charge Current | 2000mA(1.0C) |
| Quick Discharge Current | 4000mA(2.0C) |
| Maximum Instantaneous Pulse Discharge Current | 6000mA(3.0C) |
| Initial Impedance | ＜55mΩ |
|
Operating Temperature |
Charge, 0°C ~ 45°C |
| Discharge, -20°C~60°C | |
| Storage Temperature | -5~35°C ≤75%RH |
| Weight | Approx: 35.5g |
|
Outline Dimensions: |
|
2000mAh 18500 Cylindrical Battery Applications
The characteristics of cylindrical li-ion battery are high energy density, long life, low self-discharge, fast charging, good safety and adaptability, therefore, it is widely used in electric tools, electric vehicles, portable electronic products and other fields.
 |
2000mAh 18500 Cylindrical Battery Advantages
1) Cells: A grade cells to make sure batteries in high and full capacity,
2). High-energy density,
3). Low self-discharge,
4). Low internal resistance,
5). Long cycle life, over 1000 times,
6) Certifications : UL, CE, CB, UN38.3, MSDS,...
