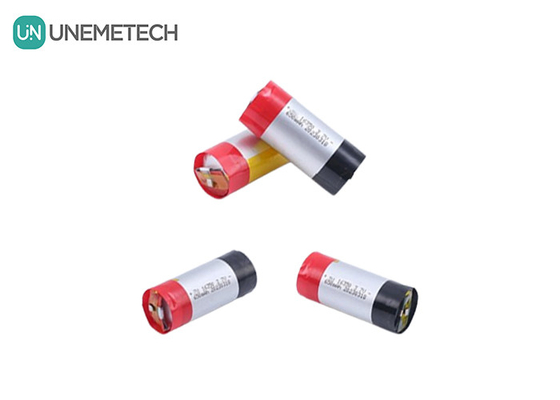

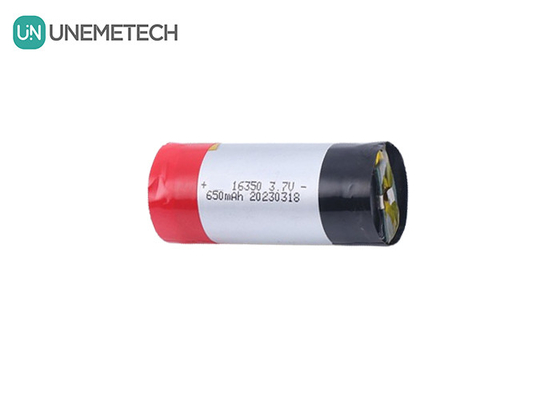

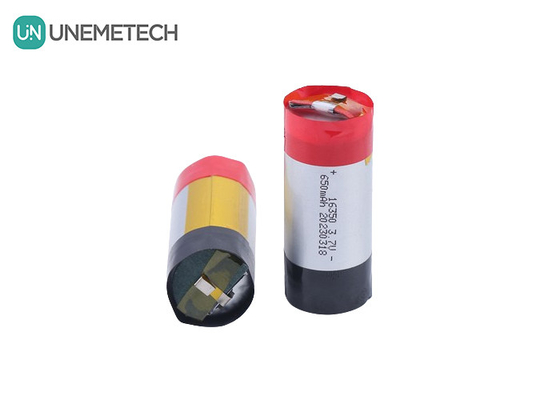

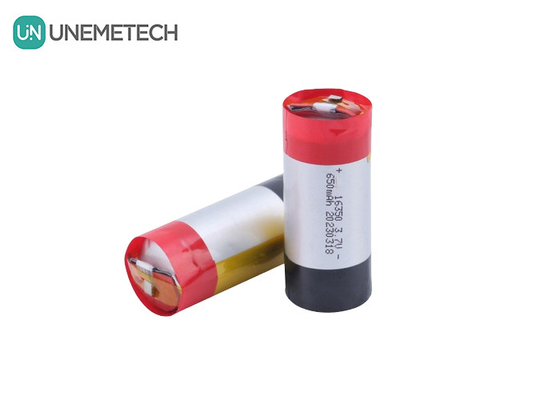

5A High Rate Discharge Cylindrical Li-polymer Battery 3.7V 650mAh 16350 for Home Appliances
Advantages of Cylindrical Li-polymer Battery
1. Thin, lightweight, customizable shape, suitable for some special design needs, such as curved surface equipment and ultra-thin equipment.
2. It has a high energy density and can provide longer battery life.
3. Relatively high safety performance and low self-discharge rate
4. Efficient heat dissipation: reduced overheating risks.
5. Standard sizes: easy replacement and availability.
6. Built-in safety features: protects against overcharging and short circuits.
3.71V 650mAh 16350 Battery Description
| Battery Model | 16350 |
| Nominal voltage | 3.7V |
| Typical capacity | 680mAh |
| Minimum capacity | 650mAh |
| Energy | 2.405Wh |
| Limited Charging voltage | 4.2V |
| Upper Limited Charge Voltage | 4.25V |
| Discharge Cut-off Voltage | 3.0V |
| Standard charging | 130mA |
| Max charging | 650mA |
| Standard discharging | 0.2C/3.0V |
| Max continuous discharge | 5A/3.0V |
| 3A Pluse discharging capacity | ≥650mAh |
| Weight | Appr 16.8g |
| Shipment voltage | 3.95～4.05V |
| Battery pack impedance | ≤60mΩ |
| Allowable Temperature Range | 5℃～45℃ Charge Temperature Range |
| -10℃～60℃ Discharge Temperature Range | |
 |
|
|
Item
|
Specifications
|
| D1 |
16.3mm max
|
| D2 |
15.1 mm min
|
| L |
35.5mm max (with tab)
|
| W1 |
4.0±1.0 mm
|
| L1 |
4.0±1.0 mm
|
| The diameter of cell should be based on 16.3mm inner diameter standard | |
Cylindrical LiPo Battery Application
Bluetooth headsets, smart wearables, gps navigators, POS machines, mobile power supplies, learning machine tablets, car navigation, MP3, MP4, MP5, card speakers, wireless mice, mobile phones, Xiaomi displays, PSP built-in batteries, Apple peripherals Power supplies, tablet computers, mobile DVDs, laptop batteries, wireless monitoring equipment, medical equipment, various instruments and meters, LED lamps, traffic signs, portable small appliances, various DIY instruments and meters, metal detectors, and other digital batteries product.
