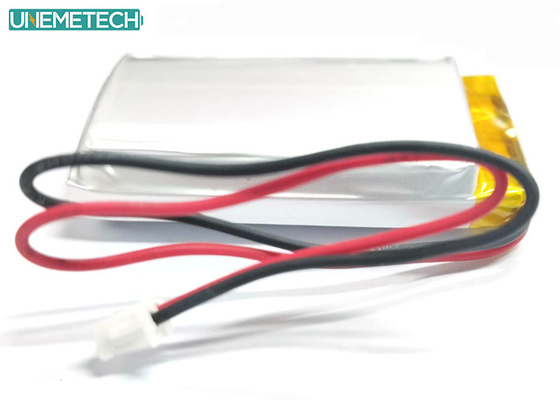

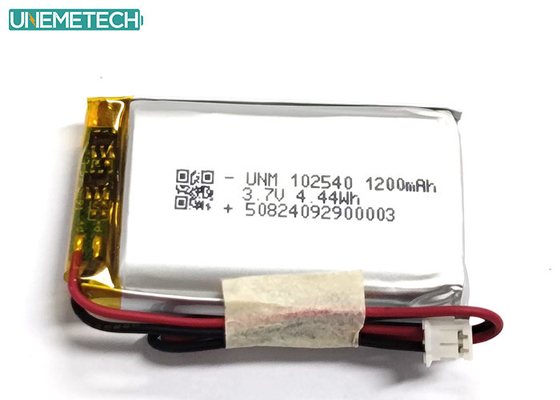

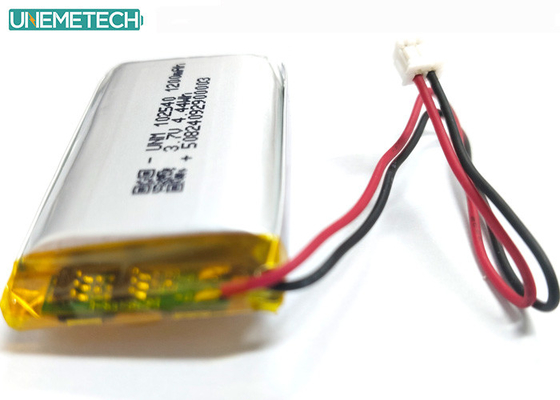

1200mAh 2C Fast Charge Lithium Polymer Battery 3.7V 102540 For Medical Product
2C Fast Charge Lipo Battery 102540 Description
The 102540 lithium polymer battery operates at 3.7V with a capacity of 1200mAh and supports 2C fast charging, making it an excellent choice for medical products. Designed for deep cycle life, this battery ensures reliable performance and longevity, allowing for accurate readings under various conditions. The 1200mAh capacity provides sufficient power for extended use, minimizing the need for frequent recharging. Its compact size allows for easy integration into medical products, enhancing both functionality and portability. Overall, the 102540 battery is a robust power solution that meets the demands of modern electronic devices.
2C Fast Charge Lipo Battery 102540 Parameters
| Description: 102540 3.7V 1200mAh | |||
| Battery Type | Li-Polymer Battery | Material | LiCoO2/NCM |
| Model | 102540 | Nominal Voltage/Capacity | 3.7V/1200mAh |
| Weight | Approx 18.0g | Color&Shape | Silver, Prismatic |
| Battrey Cell Dimension | MAX 10.0(T)x25.0(W)x40.0(L)mm | Battery Pack Dimension | MAX 10.0(T)x20.0(W)x42.0(L)mm |
| Cycle Life | ≥ 500 times | Warranty | 1 Year |
| Charge Info | Charge Voltage : 4.2V | ||
| Standard Charge Current : 240mA/0.2C | |||
| Max Charge Current: 2400mA/2.0C (2C Charge 1C Discharge, Capacity≥90%) | |||
| Discharge Info | Discharge Cut-off Voltage : 3.0V | ||
| Standard Discharge Current : 240mA/0.2C | |||
| Max Discharge Current : 1200mA/1.0C | |||
| Operating Temperature | Charge: 0℃~+45℃ | ||
| Discharge: -20℃~+60℃ | |||
 |
|||
Lipo Battery Application
Lipo Battteries are widely used in below fileds:
1. Consumer categories: digital cameras; digital camcorders; MP3/MP4 players; pdas; electric toothbrushes; electric shavers; voice recorders; electronic dictionaries; e-book readers; game consoles; wireless mice; etc.
2. Electric tools: electric saw, electric drill, etc.
3. Small household appliances: portable vacuum cleaners, electric mops and so on.
4. Electric toys: remote control Toys, model aircraft, model ships and so on.
5. Electric vehicles: electric bicycles, electric cars and so on.
6. Lighting category: emergency lamp, lawn lamp, miner's lamp, solar lamp, LED lamp, etc.
7. Beauty and health care category: electric beauty, hairdresser, etc.
8. Medical devices: portable electronic medical equipment, hearing aids, electric wheelchair, etc.
9. Other classes: instrumentation, GPS, high-temperature power supply system, cold equipment, etc.
Precautions for Use
1. Charging: Use a charger designed for polymer lithium batteries. Avoid overcharging.
2. Discharging: Prevent deep discharge by avoiding extremely low voltage levels. Most polymer lithium batteries have built-in protection circuits.
3. Temperature: Operate within the recommended temperature range provided by the manufacturer. Avoid exposing to extreme temperatures.
4. Physical Handling: Handle with care to avoid damage or leakage. Avoid impacts, punctures, or bending.
5. Compatibility: Ensure compatibility with your device in terms of voltage, capacity, and size.
6. Storage: Store in a cool, dry place away from direct sunlight. Avoid storing at full charge or completely discharged.
7. Transportation: Comply with transportation regulations and guidelines.
8. Disposal: Dispose of properly. Recycle at designated facilities or follow local regulations.
After-sales Service
1. After-sales warranty:
- According to the contract, we provide a certain warranty period for the exported lithium polymer batteries.
- During the warranty period, if the product has quality problems under normal use conditions, we will provide replacement or return service according to the after-sales policy.
2. Product quality assurance:
- We guarantee that the exported lithium polymer batteries comply with international quality standards and regulations, and undergo strict quality control and testing to ensure their performance and reliability.
- If you find product quality problems under normal use conditions, please contact us within the contractual warranty period, we will actively deal with it and provide solutions.
3. Problem solving:
- If you encounter any problems or have any complaints during the after-sales service, please contact our customer service team in time.
- We will be happy to provide you with support and actively seek solutions to your problems to ensure your satisfaction and good cooperative relationship.
Our Advantages
◆ Over 10 years of li-polymer battery manufacture & export experience
◆ Professional R&D team supporting
◆ Excellent quality, advanced equipment and competitive prices
◆ Good package, cheap freight cost, faster delivery, best after-sales service
◆ OEM / ODM are welcome, we can customize different size to meet customer's requirements
◆ Long life cycle of charging & discharging
The size of lithium polymer battery can be customized. We have advantage making special Li-Po battery such as extremely thin Li-Po battery , curved battery, high temperature Li-Po battery, low temperature Li-Po battery, fast charge Li-Po battery, high discharge Li-Po battery...we have over 4000 models for you to choose.
***Please contact us to get more detailed information and free samples***
