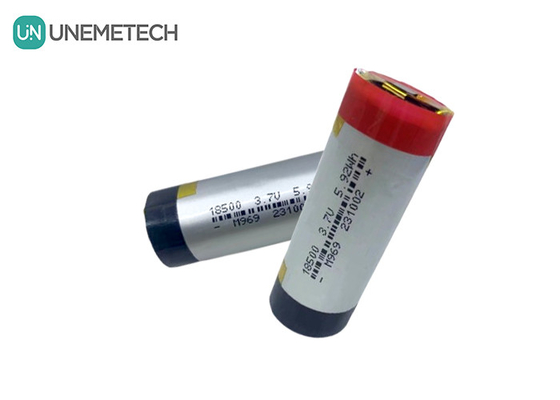

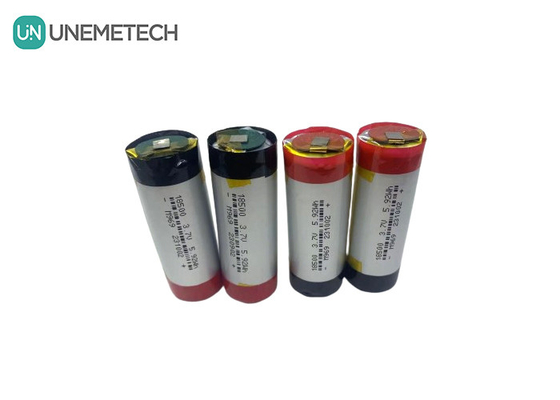

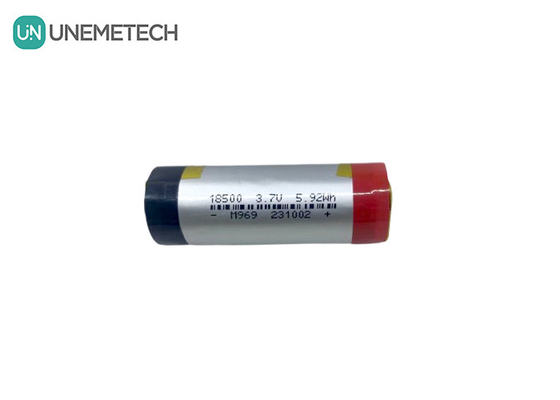

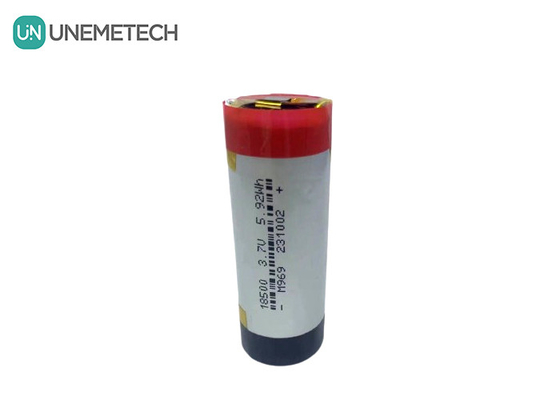

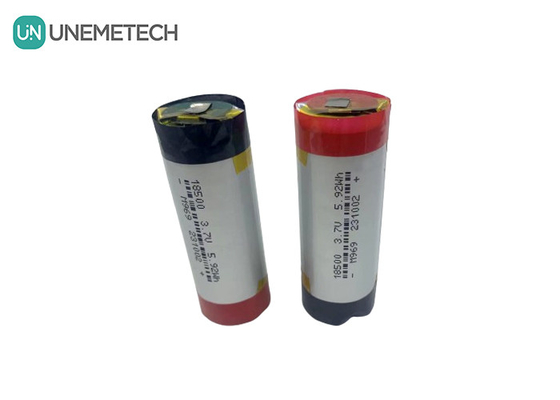

3.7V 1600mAh 18500 Battery Description
| Battery Model | 18500 |
| Nominal voltage | 3.7V |
| Typical capacity | 1680mAh |
| Minimum capacity | 1600mAh |
| Energy | 5.92Wh |
| Limited Charging voltage | 4.2V |
| Upper Limited Charge Voltage | 4.25V |
| Discharge Cut-off Voltage | 3.0V |
| Standard charging | 320mA |
| Max charging | 1600mA |
| Standard discharging | 1.0C/3.0V |
| Max continuous discharge | 3A/3.0V |
| Weight | Appr 28.3g |
| Shipment voltage | 4.15～4.23V |
| Battery pack impedance | ≤50mΩ |
| Allowable Temperature Range | 5℃～45℃ Charge Temperature Range |
| -10℃～60℃ Discharge Temperature Range | |
 |
|
|
Item
|
Specifications
|
| D1 |
18.5mm max
|
| D2 |
17.0 mm min
|
| L |
51.0mm max
|
| W1 |
4.0± 0.5 mm
|
| L1 |
4.0±1.5 mm
|
| The diameter of cell should be based on 18.5mm inner diameter standard | |
Cylindrical LiPo Battery Application
The cylindrical lipo battery has a broad development prospect. With the development of technology and new energy market, lithium polymer battery has been widely used in many fields because of its lightweight, high energy density and long life. In the future, polymer lithium batteries will play a more important role in electric vehicles, wearable devices, internet of things and other fields.
Our Advantages
◆ Over 10 years of li-polymer battery manufacture & export experience
◆ Professional R&D team supporting
◆ Excellent quality, advanced equipment and competitive prices
◆ Good package, cheap freight cost, faster delivery, best after-sales service
◆ OEM / ODM are welcome, we can customize different size to meet customer's requirements
***Please contact us to get more detailed information and free samples***
