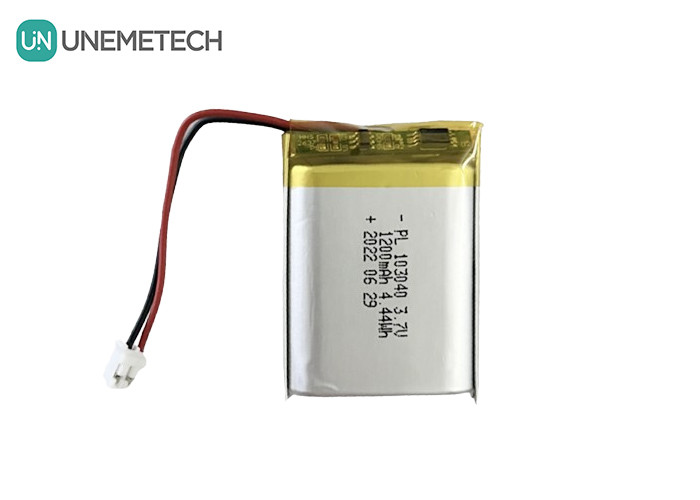

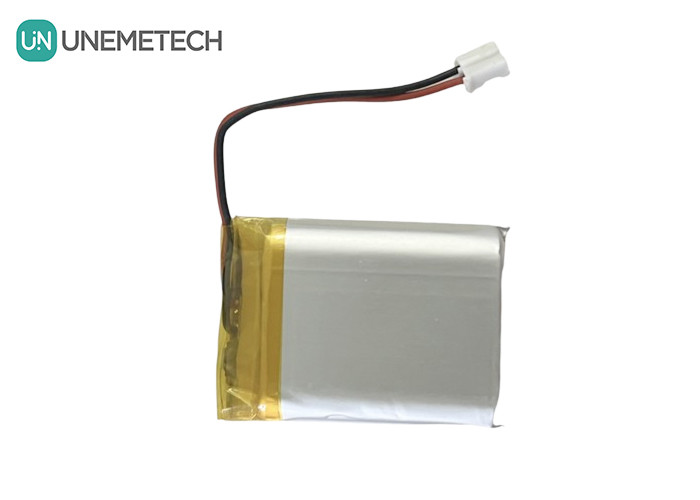

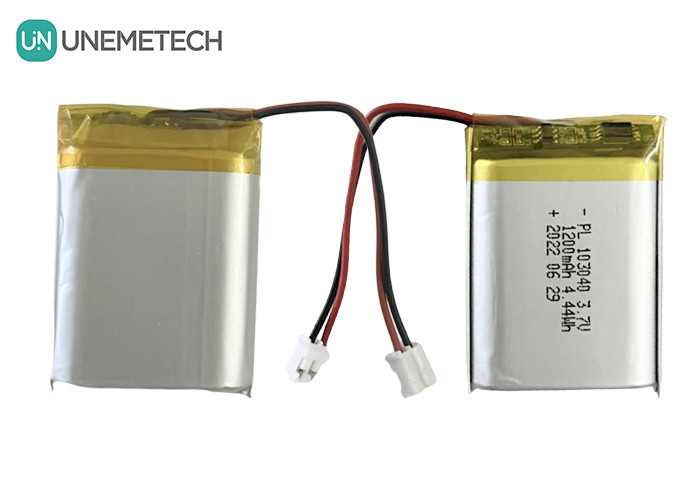

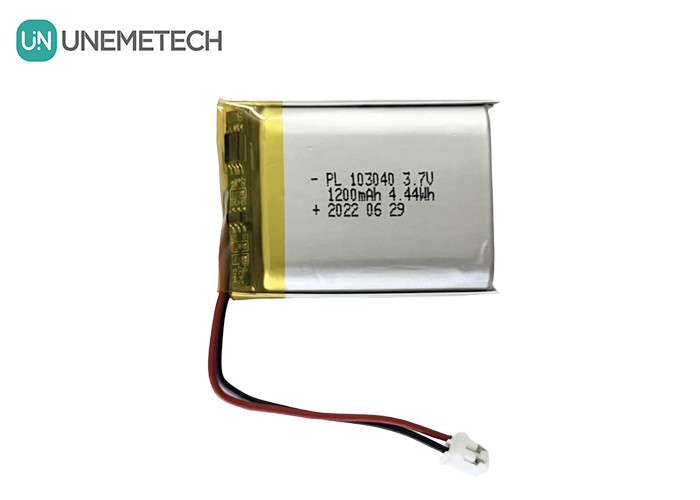

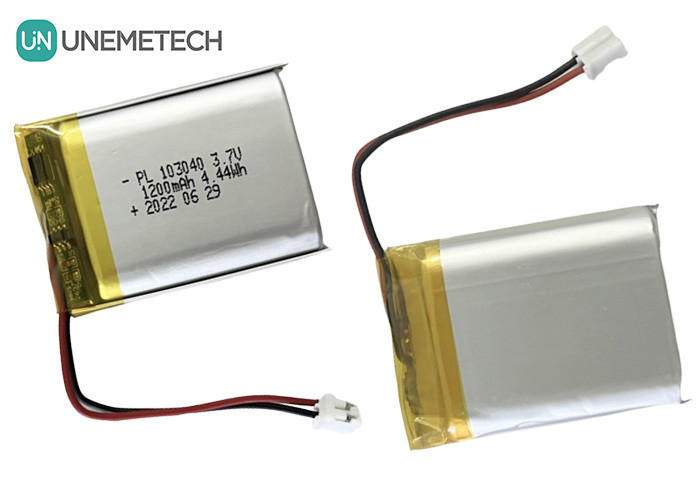

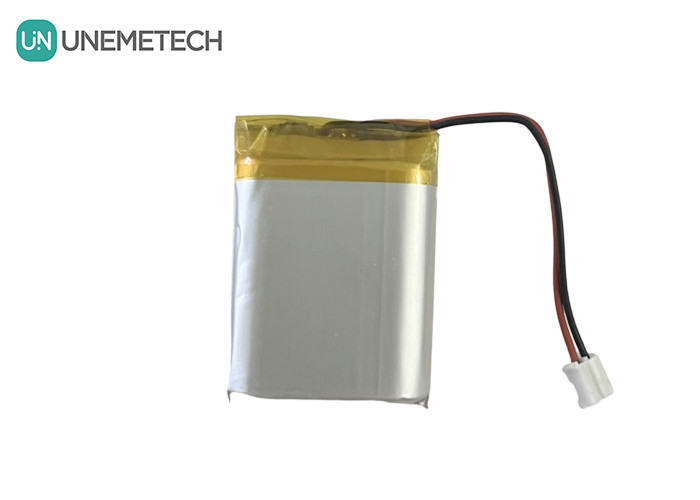

China Factory Price 3.7V 1200mAh Rechargeable Lipo Battery 103040 for Consumer Electronics
Product Description
 |
Battery Type: Rechargeable Lipo Battery Configuration: 1S1P Part Number: 103040 Nominal Capacity: 1200mAh Nominal Voltage: 3.7V Weight: appr. 23.0g Protection Circuit(PCM): Yes Thermistor(NTC): No(Available) Lead wires: UL1571-AWG#26(Changeable), length: TBD Connector: JST-PHR-2P(Changeable) Pack size Max.: 10.0x 30.5 x 42.5mm (T*W*L) |
| Item | Description | Dimension | |
| T | Battery pack Thickness max. | Initial | 10.0mm |
| After 500 Cycles | 10.mm | ||
| W | Battery Pack Width max. | 30.5mm | |
| H | Battery Pack Height max. | 42.5mm | |
| A | Wire Length | TBD | |
| Connector | JST-PHR-2P(Replaceable) | TBD | |
| Battery Pack Impedance | ≤ 160mΩ | ||
| Item | Parameter | |
| Charging Voltage | 4.2V | |
|
Discharging cut-off Voltage |
2.75V/3.0V | |
| Standard Charging Current | 0.2C/240mA | |
| Max Charging Current | 1.0C/1200mA | |
| Standard Discharging Current | 0.2C/240mA | |
| Max Charging Current | 1.0C/1200mA | |
|
Cell Weight |
Appr: 23.0g | |
|
Shipment Voltage |
≥3.8V(Changeable) | |
|
Cell Impedance |
≤ 60mΩ | |
|
Operating Temperature |
Charging: 0°C ~ 45°C |
|
|
Discharging: -20°C ~60°C |
||
|
Visual Inspection |
Do not appear such as tear, corrosion, deformation, gas bulge, leakage and other harmful phenomena that damage commercial value. | |
Product Certificates and Reports
|
|
Product Applications
|
Product Packaging and Delivery
|
The size of lithium polymer battery can be customized. We have advantage making special Li-Po battery such as extremely thin Li-Po battery , curved battery, high temperature Li-Po battery, low temperature Li-Po battery and special shape Li-Po battery (round)
***Please contact us get more detailed information and free samples***
